BQ29411DCTRG4 - Texas Instruments

Description: BQ29411DCTRG4, Li-Ion Protector Circuit, Lithium-Ion, 8-Pin SSOP

Download BQ29411DCTRG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

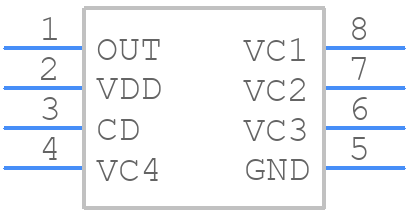

BQ29411DCTRG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ29411DCTRG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DCT0008A
click to zoom
3D Models
BQ29411DCTRG4 - Texas Instruments - 3D model - Small Outline Packages - DCT0008A
click to zoom

BQ29411DCTRG4 Details

  • Manufacturer Part Number:

    BQ29411DCTRG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    1

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    SECONDARY BATTERY PROTECTOR

  • Input Voltage-Max:

    25 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    2.95 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    110 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.3 mm

  • Supply Voltage-Max (Vsup):

    25 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    14 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.8 mm

BQ29411DCTRG4 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for high-frequency PCB design, such as keeping the power traces short and wide, using a solid ground plane, and minimizing vias and thermal reliefs.
  • The datasheet provides guidelines for selecting external components, but it's also recommended to use the Texas Instruments WEBENCH Power Designer tool, which can help you select the optimal components based on your specific design requirements.
  • The maximum ambient temperature range for the BQ29411DCTRG4 is -40°C to 125°C, but it's recommended to derate the device's performance at higher temperatures to ensure reliability and longevity.
  • The BQ29411DCTRG4 has built-in OVP and UVP features, but you can also implement additional protection using external components, such as zener diodes and resistors, to provide extra protection against voltage transients and faults.
  • The recommended input capacitor type is a low-ESR ceramic capacitor, and the value depends on the input voltage and current requirements, but a typical value is 10uF to 22uF.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BQ29411DCTRG4 Overview

Use the download button to access the BQ29411DCTRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ294, or try a keyword search, such as Power Management Circuits
