BQ29411DCTT - Texas Instruments

Description: Battery Battery Protection IC Lithium Ion SM8

Download BQ29411DCTT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

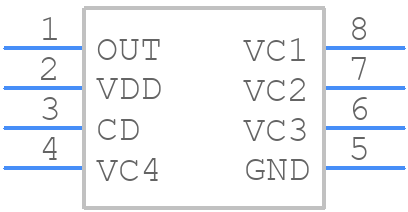

BQ29411DCTT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ29411DCTT - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DCT0008A
click to zoom
3D Models
BQ29411DCTT - Texas Instruments - 3D model - Small Outline Packages - DCT0008A
click to zoom

BQ29411DCTT Details

  • Manufacturer Part Number:

    BQ29411DCTT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    1

  • Additional Feature:

    Battery over-voltage protection(Min/Max)(V) : 4.375 and 4.425

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    SECONDARY BATTERY PROTECTOR

  • Input Voltage-Max:

    25 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    2.95 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    110 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.3 mm

  • Supply Voltage-Max (Vsup):

    25 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    14 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.8 mm

BQ29411DCTT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for high-frequency PCB design, such as keeping the power traces short and wide, using a solid ground plane, and minimizing vias and thermal reliefs.
  • The selection of external components depends on the specific application and design requirements. Texas Instruments provides a component selection guide in the datasheet, and online tools such as the TI Power Stage Designer can also be used to help select the correct components.
  • The BQ29411DCTT is rated for operation up to 105°C ambient temperature, but the actual operating temperature may be limited by the specific application and design requirements.
  • The BQ29411DCTT has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor and capacitor. The datasheet provides more information on how to implement overcurrent protection.
  • Yes, the BQ29411DCTT is qualified for automotive and high-reliability applications, and meets the requirements of the AEC-Q100 standard. However, additional testing and validation may be required for specific applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BQ29411DCTT Overview

Use the download button to access the BQ29411DCTT schematic symbol, PCB footprint, and 3D model.
