BQ294604DRVR - Texas Instruments

Description: Battery Management Overvlt Prot for 2/3 Ser Cell Li-Ion Batt

Download BQ294604DRVR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

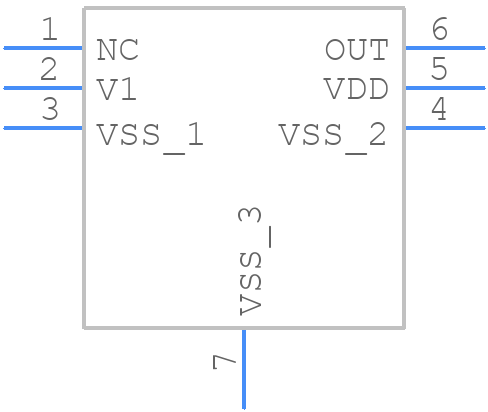

BQ294604DRVR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ294604DRVR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DRV0006A
click to zoom
3D Models
BQ294604DRVR - Texas Instruments - 3D model - Small Outline No-lead - DRV0006A
click to zoom

BQ294604DRVR Details

  • Manufacturer Part Number:

    BQ294604DRVR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Pin Count:

    6

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    BATTERY PROTECTOR

  • Input Voltage-Max:

    8 V

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    110 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.08SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.00125 mA

  • Supply Voltage-Max (Vsup):

    8 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    4 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au); Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    4.35

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

BQ294604DRVR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow the layout guidelines in the application note 'BQ29460xDRVR Layout Guidelines' (SLUAUH7) for optimal performance.
  • The BQ294604DRVR is designed to work with various battery chemistries, including Li-ion, Li-polymer, and Li-iron phosphate. Configuration is done through the I2C interface, and the specific configuration depends on the battery chemistry. Refer to the datasheet and application notes for specific configuration details.
  • The BQ294604DRVR supports up to 4A of charging current, but the actual maximum current depends on the specific application and the thermal design of the system. It's recommended to consult the datasheet and thermal design guidelines to ensure safe and reliable operation.
  • The BQ294604DRVR has built-in overcharge protection, which can be configured through the I2C interface. The device monitors the battery voltage and temperature to prevent overcharging. Refer to the datasheet and application notes for specific implementation details.
  • Yes, the BQ294604DRVR can be used with a fuel gauge, such as the Texas Instruments BQ27441. The fuel gauge provides accurate state-of-charge information, and the BQ294604DRVR provides charging and protection functions. Refer to the datasheet and application notes for specific implementation details.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BQ294604DRVR Overview

Use the download button to access the BQ294604DRVR schematic symbol, PCB footprint, and 3D model.
