A 4-layer PCB with a solid ground plane and a separate layer for the power traces is recommended. Keep the power traces short and wide, and use vias to connect the power planes to the ground plane. Refer to the TI application note 'PCB Layout Guidelines for the BQ294702DSGR' for more details.
Use the TI Webench tool or the BQ294702DSGR datasheet to select the correct external components, such as the inductor, capacitors, and resistors. The tool will provide a list of recommended components based on the input voltage, output voltage, and current requirements.
The BQ294702DSGR is rated for operation from -40°C to 125°C. However, the device may not meet its specified performance at the extreme temperatures. Ensure proper thermal design and heat sinking to maintain a safe operating temperature.
Use an oscilloscope to monitor the output voltage and current. Check for proper PCB layout, component selection, and thermal design. Refer to the TI application note 'Troubleshooting the BQ294702DSGR' for a step-by-step guide to identifying and resolving common issues.
Yes, the BQ294702DSGR is AEC-Q100 qualified and suitable for automotive and high-reliability applications. However, ensure that the device is used within its specified operating conditions and that the system design meets the required safety and reliability standards.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ294702DSGR Overview

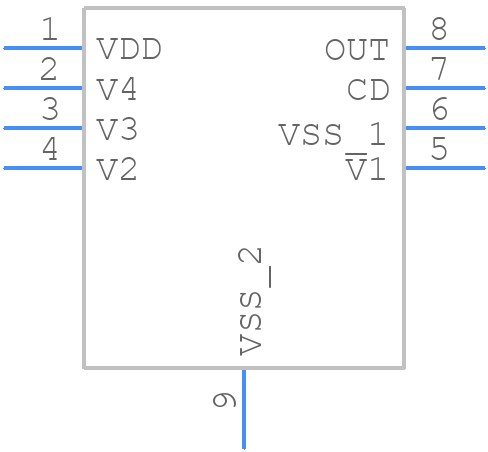

Use the download button to access the BQ294702DSGR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ294,
or try a keyword search, such as Power Management Circuits
