BQ294704DSGT - Texas Instruments

Description: Overvoltage Protection Device Li-Ion -0.3V to 30V 8-Pin WSON EP T/R

Download BQ294704DSGT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

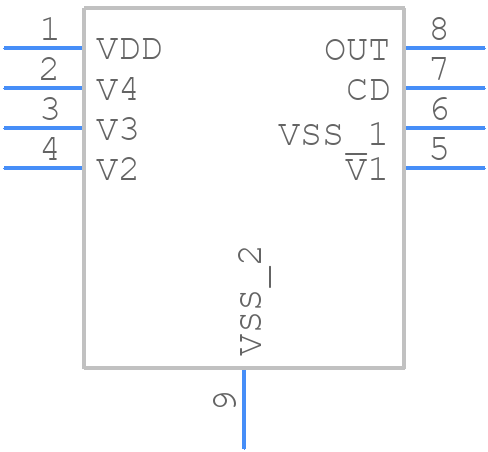

BQ294704DSGT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ294704DSGT - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DSG0008A _ 2021
click to zoom
3D Models
BQ294704DSGT - Texas Instruments - 3D model - Small Outline No-lead - DSG0008A _ 2021
click to zoom

BQ294704DSGT Details

  • Manufacturer Part Number:

    BQ294704DSGT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Battery over-voltage protection(Min/Max)(V) : 3.85 and 4.6

  • Analog IC - Other Type:

    BATTERY PROTECTOR

  • Input Voltage-Max:

    20 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    110 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.002 mA

  • Supply Voltage-Max (Vsup):

    20 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

BQ294704DSGT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow the guidelines in the application note 'BQ294704 PCB Layout Guidelines' (SLUAUH7) for optimal performance.
  • The sense resistor value depends on the maximum current and voltage of your application. TI provides a sense resistor calculator tool (SLVCAT) that can help you select the correct value. You can also refer to the application note 'BQ294704 Sense Resistor Selection' (SLUAUH6) for more information.
  • The BQ294704DSGT has a maximum voltage rating of 36V, but it's recommended to operate the device within the recommended operating conditions specified in the datasheet to ensure reliable operation.
  • The BQ294704 has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor divider network. The application note 'BQ294704 Overcurrent Protection' (SLUAUH5) provides more information on how to implement overcurrent protection.
  • The typical response time for the OVP feature is around 1us, but this can vary depending on the specific application and PCB layout. It's recommended to verify the response time in your specific application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BQ294704DSGT Overview

Use the download button to access the BQ294704DSGT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ294, or try a keyword search, such as Power Management Circuits
