A good PCB layout for the BQ2954SN involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the high-current paths. TI provides a recommended layout in the datasheet and application notes.
The selection of external components depends on the specific application requirements, such as input voltage, output voltage, and maximum current. TI provides a component selection guide in the datasheet and application notes, and online tools like the TI Power Stage Designer can also be used to aid in component selection.
The BQ2954SN has a maximum junction temperature of 150°C. To ensure reliable operation, the device should be mounted on a PCB with a good thermal design, and the thermal pad should be connected to a solid ground plane. The device's thermal performance can be estimated using TI's thermal calculator tool.
The BQ2954SN has a built-in overcurrent protection feature that can be enabled by connecting the OC pin to a resistor divider network. The resistor values can be calculated using the equations provided in the datasheet, and the threshold can be adjusted to suit the specific application requirements.
Yes, the BQ2954SN is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard, and TI provides a detailed report on the device's reliability and qualification.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ2954SN Overview

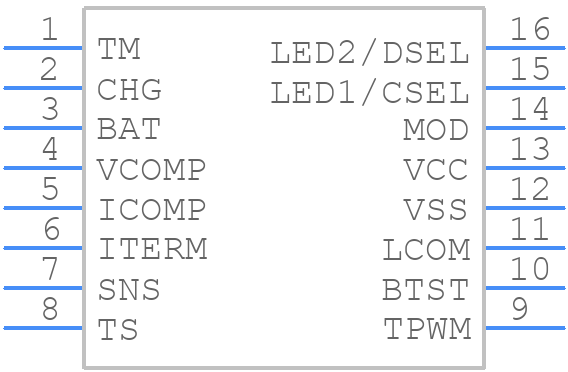

Use the download button to access the BQ2954SN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ295,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
