Battery over-voltage protection(Min/Max)(V) : 3.85 and 4.6
Adjustable Threshold:
YES
Analog IC - Other Type:
BATTERY PROTECTOR
Input Voltage-Max:
20 V
JESD-30 Code:
S-PDSO-N8
JESD-609 Code:
e4
Length:
2 mm
Moisture Sensitivity Level:
1
Number of Channels:
4
Number of Functions:
1
Number of Terminals:
8
Operating Temperature-Max:
110 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVSON
Package Shape:
SQUARE
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
0.8 mm
Supply Current-Max (Isup):
0.008 mA
Supply Voltage-Max (Vsup):
20 V
Supply Voltage-Min (Vsup):
3 V
Supply Voltage-Nom (Vsup):
14.4 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Threshold Voltage-Nom:
+4.5
Time@Peak Reflow Temperature-Max (s):
30
Width:
2 mm
BQ296103DSGT Frequently Asked Questions (FAQs)
Texas Instruments recommends a compact layout with the device placed close to the battery, and the power paths should be short and wide to minimize resistance and inductance. A 4-layer PCB is recommended, with the top layer for signals, the second layer for power, the third layer for ground, and the bottom layer for signals.
The sense resistor value depends on the maximum charge current and the desired accuracy. A lower sense resistor value provides better accuracy but increases power loss. Texas Instruments provides a sense resistor calculator tool to help with the selection.
The EN (enable) pin is used to enable or disable the charger. When EN is high, the charger is enabled, and when EN is low, the charger is disabled. The EN pin can be connected to a GPIO pin of a microcontroller or a power management IC to control the charger's operation.
The BQ296103DSGT has a built-in OVP feature that can be enabled by connecting the OVP pin to a voltage divider network. The OVP threshold is set by the voltage divider ratio, and when the input voltage exceeds the threshold, the charger is disabled.
The BQ296103DSGT is rated for operation from -40°C to 85°C. However, the device's performance and reliability may be affected at extreme temperatures. It's essential to ensure proper thermal design and heat dissipation in the application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ296103DSGT Overview

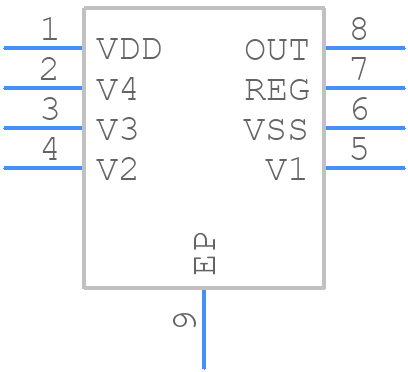

Use the download button to access the BQ296103DSGT schematic symbol, PCB footprint, and 3D model.
