Texas Instruments provides a recommended layout and placement guide in the datasheet, but it's essential to follow good PCB design practices, such as keeping the device away from high-current paths, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI.
To ensure accurate battery monitoring, it's crucial to follow the recommended calibration procedure, use high-precision external resistors, and maintain a stable temperature environment. Additionally, consider implementing software compensation for temperature and aging effects.
Although the datasheet specifies a maximum VCC voltage of 5.5V, it's recommended to keep the voltage below 5V to ensure reliable operation and prevent damage to the device.
Yes, the BQ296203DSGT supports multiple battery chemistries, including Li-ion, Li-polymer, and NiMH. However, you may need to adjust the device's configuration and calibration settings depending on the specific battery chemistry used.
The POR and BOR features are designed to ensure the device operates correctly during power-up and brown-out conditions. To handle these features, ensure that your system design includes a stable power supply, and consider adding external circuitry to filter out noise and glitches.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ296203DSGT Overview

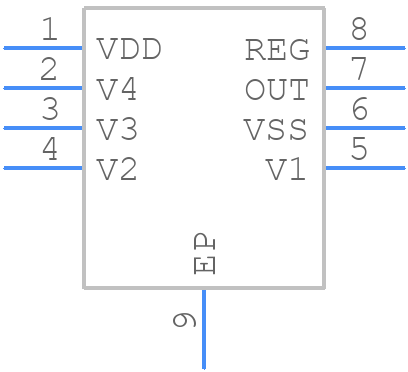

Use the download button to access the BQ296203DSGT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ296,
or try a keyword search, such as Power Management Circuits
