Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good design practices, such as keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling. Additionally, ensure the layout is symmetrical and balanced to reduce electromagnetic interference (EMI).
To minimize high-frequency noise, use a common-mode choke or a ferrite bead in series with the input power lines. Additionally, ensure the PCB layout is designed to minimize loop areas and use shielding or guard rings around sensitive analog circuits. Filtering capacitors can also be added to reduce noise.
The BQ296216DSGR can support up to 3A of charging current, but the maximum current is limited by the external components, such as the FETs, inductors, and capacitors. Ensure that the external components are rated for the desired charging current and follow the recommended component selection guidelines in the datasheet.
The BQ296216DSGR has built-in OVP and UVP features, but they can be adjusted or customized using external resistors and capacitors. Refer to the datasheet for the recommended OVP and UVP settings and component values. Additionally, consider using external protection devices, such as voltage supervisors or reset ICs, for added protection.
The BQ296216DSGR is primarily designed for Li-ion battery charging, but it can be adapted for other battery chemistries with some modifications. However, this may require additional external components, such as voltage regulators or current sensors, and careful design consideration to ensure safe and efficient charging.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ296216DSGR Overview

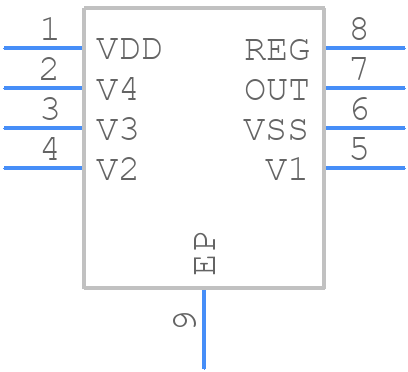

Use the download button to access the BQ296216DSGR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ296,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
