Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good design practices, such as keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling. Additionally, ensure the layout is symmetrical and balanced to reduce electromagnetic interference (EMI).
The datasheet provides guidelines for selecting external components, such as resistors, capacitors, and inductors. Consider factors like component tolerance, temperature coefficient, and parasitic effects. It's also crucial to ensure the components are compatible with the device's operating frequency and voltage range.
The BQ296221DSGR has an absolute maximum input voltage rating of 18V. However, the recommended operating input voltage range is 4.5V to 16V. Exceeding the maximum input voltage can damage the device or affect its performance.
The BQ296221DSGR has built-in OVP and UVP features. To implement these features, connect the OVP and UVP pins to the input voltage rail through resistors and capacitors, as shown in the datasheet. This will enable the device to detect and respond to voltage anomalies.
The EN (enable) pin is used to enable or disable the device. When the EN pin is high, the device is enabled, and when it's low, the device is disabled. This pin can be used to implement power sequencing, shutdown, or low-power modes. Connect the EN pin to a logic signal or a voltage source, and ensure it meets the specified voltage and timing requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ296221DSGR Overview

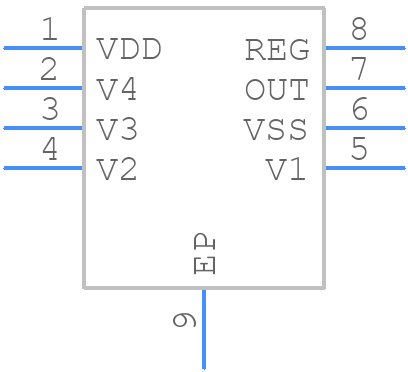

Use the download button to access the BQ296221DSGR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ296,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
