Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the power traces short and wide, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, ensure that the PCB layout is symmetrical to minimize electromagnetic interference (EMI).
The selection of external components, such as resistors, capacitors, and inductors, depends on the specific application and requirements. Texas Instruments provides a component selection guide in the datasheet, but it's essential to consider factors like operating frequency, input voltage, output current, and efficiency. You can also use online tools, such as the TI Power Stage Designer, to help with component selection.
The BQ298012RUGT has an operating temperature range of -40°C to 125°C, but the maximum junction temperature (TJ) is 150°C. It's essential to ensure that the device is operated within the specified temperature range to prevent damage and ensure reliable operation.
The BQ298012RUGT has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor and capacitor. The OCP threshold can be set by selecting the appropriate resistor value. Additionally, you can use external circuitry, such as a current sense resistor and a comparator, to implement overcurrent protection.
The recommended input capacitor type is a low-ESR ceramic capacitor, such as an X5R or X7R dielectric. The input capacitor value depends on the input voltage and operating frequency, but a typical value is 10uF to 22uF. Ensure that the input capacitor is placed close to the device and has a low impedance path to the input pins.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ298012RUGT Overview

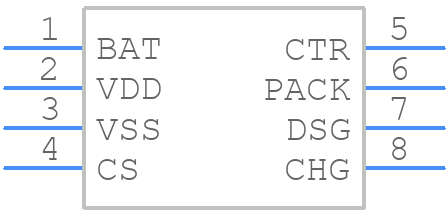

Use the download button to access the BQ298012RUGT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ298,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
