BQ3050DBTR - Texas Instruments

Description: Battery Management 2S-4S Batt Gas Gauge & Prot

Download BQ3050DBTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

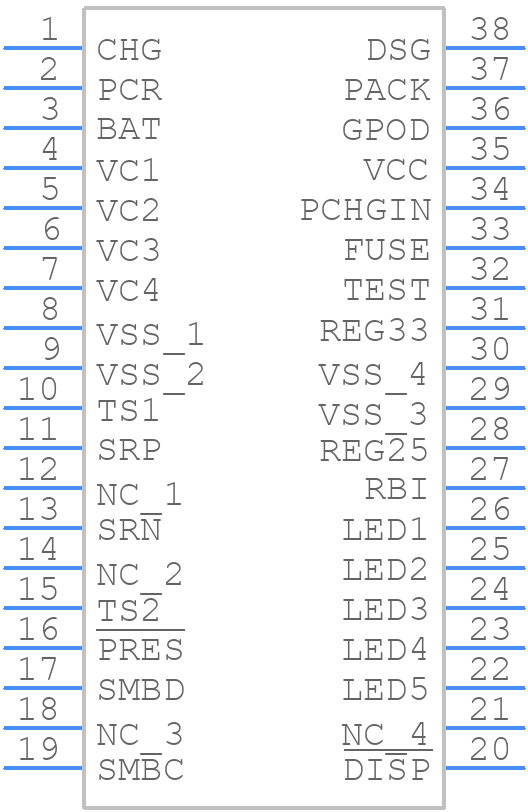

BQ3050DBTR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ3050DBTR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DBT0038A
click to zoom
3D Models
BQ3050DBTR - Texas Instruments - 3D model - Small Outline Packages - DBT0038A
click to zoom

BQ3050DBTR Details

  • Manufacturer Part Number:

    BQ3050DBTR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    38

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    BATTERY MONITOR

  • JESD-30 Code:

    R-PDSO-G38

  • JESD-609 Code:

    e4

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    38

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    25 V

  • Supply Voltage-Min (Vsup):

    3.8 V

  • Supply Voltage-Nom (Vsup):

    14.4 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

BQ3050DBTR Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a compact layout with the BQ3050DBTR placed close to the battery, and the input capacitors placed close to the device. A 4-layer PCB is recommended to minimize noise and EMI.
  • The charging current can be optimized by adjusting the resistor values of R_ILIM and R_CHG. A higher value of R_ILIM reduces the charging current, while a lower value increases it. Consult the datasheet for specific calculations and guidelines.
  • The EN (Enable) pin is used to enable or disable the charging function. When EN is high, the charger is enabled, and when EN is low, the charger is disabled. This pin can be connected to a microcontroller or a switch to control the charging function.
  • The BQ3050DBTR has an internal OVP circuit that detects over-voltage conditions and disconnects the charger from the input. However, it's recommended to add external OVP components, such as a voltage supervisor or a Zener diode, to provide additional protection.
  • The BQ3050DBTR has a thermal shutdown feature that disables the charger when the junction temperature exceeds 150°C. Ensure good thermal design practices, such as providing adequate heat sinking and airflow, to prevent overheating.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BQ3050DBTR Overview

Use the download button to access the BQ3050DBTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ305, or try a keyword search, such as Power Management Circuits
