Part Image

BQ34Z100PWR-R2 - Texas Instruments

Description: Battery Management Multi-chemistry Impedance Track stand-alone fuel gauge

Download BQ34Z100PWR-R2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

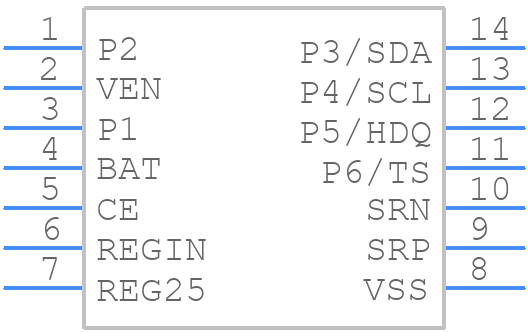

BQ34Z100PWR-R2 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ34Z100PWR-R2 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW
click to zoom
3D Models
BQ34Z100PWR-R2 - Texas Instruments - 3D model - Small Outline Packages - PW
click to zoom

BQ34Z100PWR-R2 Details

  • Manufacturer Part Number:

    BQ34Z100PWR-R2

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    BATTERY GAUGE

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    4.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

BQ34Z100PWR-R2 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow the guidelines in the application note 'Battery Fuel Gauges: PCB Layout Guidelines' (SLUA455) for optimal performance.
  • The BQ34Z100PWR-R2 has a built-in calibration mechanism. Refer to the 'Calibration' section in the datasheet for details. Additionally, the 'Battery Fuel Gauges: Calibration and Configuration' application note (SLUA456) provides more information on calibration and configuration.
  • The accuracy of the SOC measurement depends on various factors, including the battery type, age, and health. According to the datasheet, the BQ34Z100PWR-R2 has an SOC accuracy of ±5% over the entire operating range. However, this accuracy can be improved with proper calibration and configuration.
  • The BQ34Z100PWR-R2 is optimized for Li-ion batteries, but it can be used with other battery chemistries with some limitations. Consult the datasheet and application notes for more information on using the device with non-Li-ion batteries.
  • The POR and BOR are internal reset mechanisms that ensure the device operates correctly. Refer to the 'Power-On Reset (POR) and Brown-Out Reset (BOR)' section in the datasheet for details on how to handle these events.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BQ34Z100PWR-R2 Overview

Use the download button to access the BQ34Z100PWR-R2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ34Z, or try a keyword search, such as Power Management Circuits
