Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow the guidelines in the application note 'Battery Fuel Gauges: PCB Layout Guidelines' (SLUA443) for optimal performance.
The BQ34Z950DBTR has a built-in calibration mechanism. Refer to the 'Calibration' section in the datasheet for details. Additionally, the 'Battery Fuel Gauges: Calibration and Configuration' application note (SLUA444) provides more information on calibration and configuration.
The accuracy of the fuel gauge depends on various factors such as the battery type, age, and operating conditions. According to the datasheet, the BQ34Z950DBTR has an accuracy of ±1% for most battery types. However, it's recommended to consult the datasheet and application notes for more information on accuracy and how to optimize it.
Yes, the BQ34Z950DBTR supports multiple battery chemistries, including Li-ion, Li-polymer, and Li-iron phosphate. However, it's essential to consult the datasheet and application notes for specific configuration and calibration requirements for each battery chemistry.
The BQ34Z950DBTR has an I2C interface for communication with a microcontroller. Refer to the datasheet for pinout and interface details. Additionally, the 'Battery Fuel Gauges: Interfacing with a Microcontroller' application note (SLUA445) provides more information on interfacing with a microcontroller.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ34Z950DBTR Overview

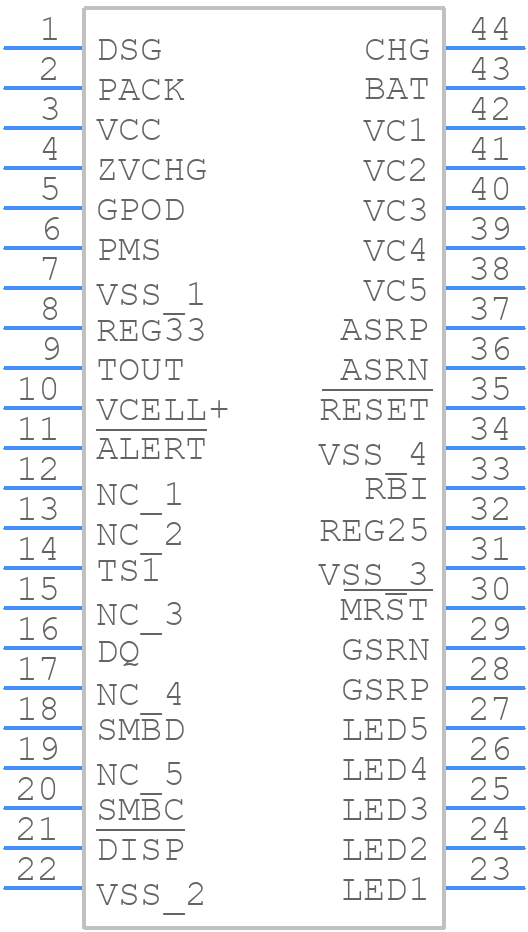

Use the download button to access the BQ34Z950DBTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ34Z,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
