BQ35100PWR - Texas Instruments

Description: Battery fuel gauge for non-rechargeable batteries (lithium primary) and end-of-service monitor

Download BQ35100PWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

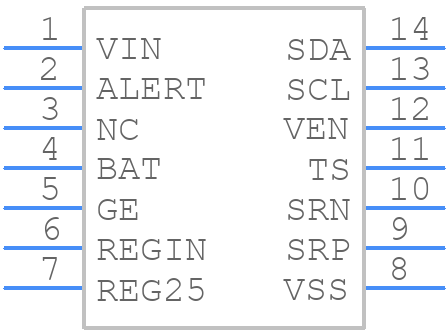

BQ35100PWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ35100PWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW (R-PDSO-G14)
click to zoom
3D Models
BQ35100PWR - Texas Instruments - 3D model - Small Outline Packages - PW (R-PDSO-G14)
click to zoom

BQ35100PWR Details

  • Manufacturer Part Number:

    BQ35100PWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2016-07-16

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    BATTERY GAUGE

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    4.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

BQ35100PWR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the power traces short and wide, and use a common ground point for the input and output capacitors.
  • Use a thermal pad or a heat sink to dissipate heat. Ensure good airflow around the device, and avoid blocking the thermal pad. Monitor the junction temperature (TJ) and adjust the design accordingly.
  • A 10uF to 22uF X5R or X7R ceramic capacitor is recommended. The capacitor should be placed as close to the VIN pin as possible, and its voltage rating should be at least 1.5 times the maximum input voltage.
  • Choose an output capacitor with a low ESR (Equivalent Series Resistance) and a high ripple current rating. A 10uF to 22uF X5R or X7R ceramic capacitor is a good starting point. Consider the output voltage, output current, and desired output ripple when selecting the capacitor.
  • The EN (Enable) pin is used to turn the device on or off. Connect the EN pin to a logic-level signal (e.g., from a microcontroller) to enable or disable the device. When EN is low, the device is in shutdown mode, and when EN is high, the device is enabled.
