BQ40Z50RSMT-R1 - Texas Instruments

Description: 1-4 Series Li-Ion Battery Pack Manager, Battery Fuel (Gas) Gauge

Download BQ40Z50RSMT-R1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

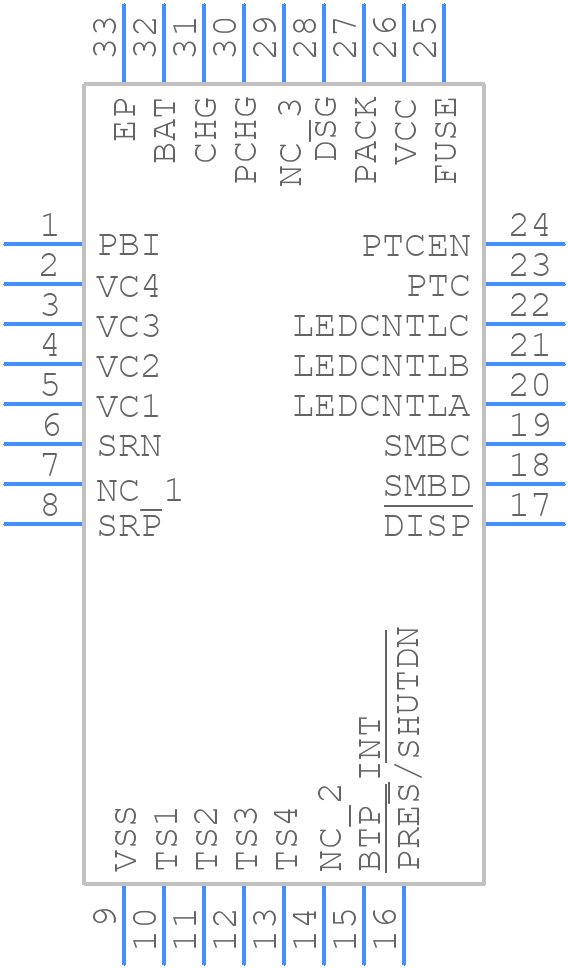

Symbol
BQ40Z50RSMT-R1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ40Z50RSMT-R1 - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RSM (S-PVQFN-N32) EP1.4
click to zoom
3D Models
BQ40Z50RSMT-R1 - Texas Instruments - 3D model - Quad Flat No-Lead - RSM (S-PVQFN-N32) EP1.4
click to zoom

BQ40Z50RSMT-R1 Details

  • Manufacturer Part Number:

    BQ40Z50RSMT-R1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    BATTERY MONITOR

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.16SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    26 V

  • Supply Voltage-Min (Vsup):

    2.2 V

  • Supply Voltage-Nom (Vsup):

    14.4 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

BQ40Z50RSMT-R1 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate layer for the battery voltage is recommended. Keep the high-current paths short and wide, and use thermal vias to dissipate heat.
  • Calibrate the fuel gauge by following the recommended calibration procedure in the datasheet. Ensure accurate battery characterization, and consider using a battery with a known capacity and internal resistance.
  • The maximum charging current is limited by the external MOSFETs and the PCB design. However, the BQ40Z50RSMT-R1 can support up to 5A charging current with proper thermal design and component selection.
  • Yes, but you may need to adjust the fuel gauge calibration and charging parameters. Consult the datasheet and application notes for guidance on supporting non-standard battery chemistries.
  • Configure the overcharge protection threshold and hysteresis using the device's registers. Ensure that the protection threshold is set above the maximum allowed battery voltage to prevent overcharging.
