Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for high-frequency PCB design, such as using a solid ground plane, minimizing trace lengths, and using decoupling capacitors.
To ensure accurate battery fuel gauging, it's essential to calibrate the device during manufacturing, use a high-accuracy voltage reference, and implement a robust battery characterization process. Additionally, consider using the device's built-in calibration features and following Texas Instruments' application notes.
The BQ40Z50RSMT-R2 has a maximum junction temperature of 125°C. To prevent overheating, ensure good airflow, use a heat sink if necessary, and follow proper PCB design guidelines for thermal management. Also, monitor the device's temperature and adjust the system design accordingly.
Implement a robust battery protection scheme by using the device's built-in protection features, such as overcharge and over-discharge protection, and configuring the device to detect and respond to fault conditions. Additionally, consider using external components, such as fuses and thermistors, to enhance protection.
To ensure EMI and EMC compliance, follow proper PCB design guidelines, use shielding and filtering techniques, and implement a robust grounding strategy. Additionally, consider using the device's built-in EMI filtering features and following Texas Instruments' application notes for EMI and EMC compliance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ40Z50RSMT-R2 Overview

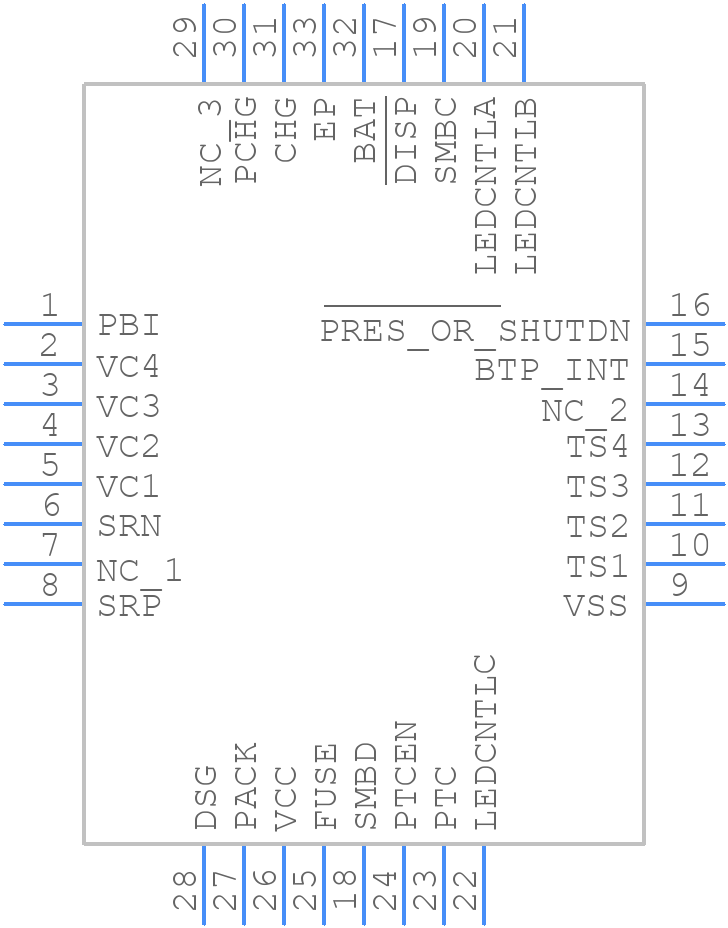

Use the download button to access the BQ40Z50RSMT-R2 schematic symbol, PCB footprint, and 3D model.
