Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the power and ground planes separate, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise.
The BQ40Z80RSMR is a flexible fuel gauge that can be configured for various battery chemistries. You'll need to consult the datasheet and application notes to determine the correct configuration for your specific battery chemistry, including setting the correct gain and offset values.
The BQ40Z80RSMR's SOC measurement accuracy depends on various factors, including the battery chemistry, age, and health. According to the datasheet, the typical SOC accuracy is ±5% over the entire SOC range. However, this can be improved with calibration and compensation techniques.
The BQ40Z80RSMR has built-in POR and BOR features to ensure reliable operation. You should ensure that your system design takes into account the POR and BOR timing requirements, and that your firmware is designed to handle these events correctly.
Yes, the BQ40Z80RSMR can be used with multiple battery cells. However, you'll need to ensure that the device is properly configured for the specific battery configuration, and that the voltage and current measurements are correctly scaled and compensated.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ40Z80RSMR Overview

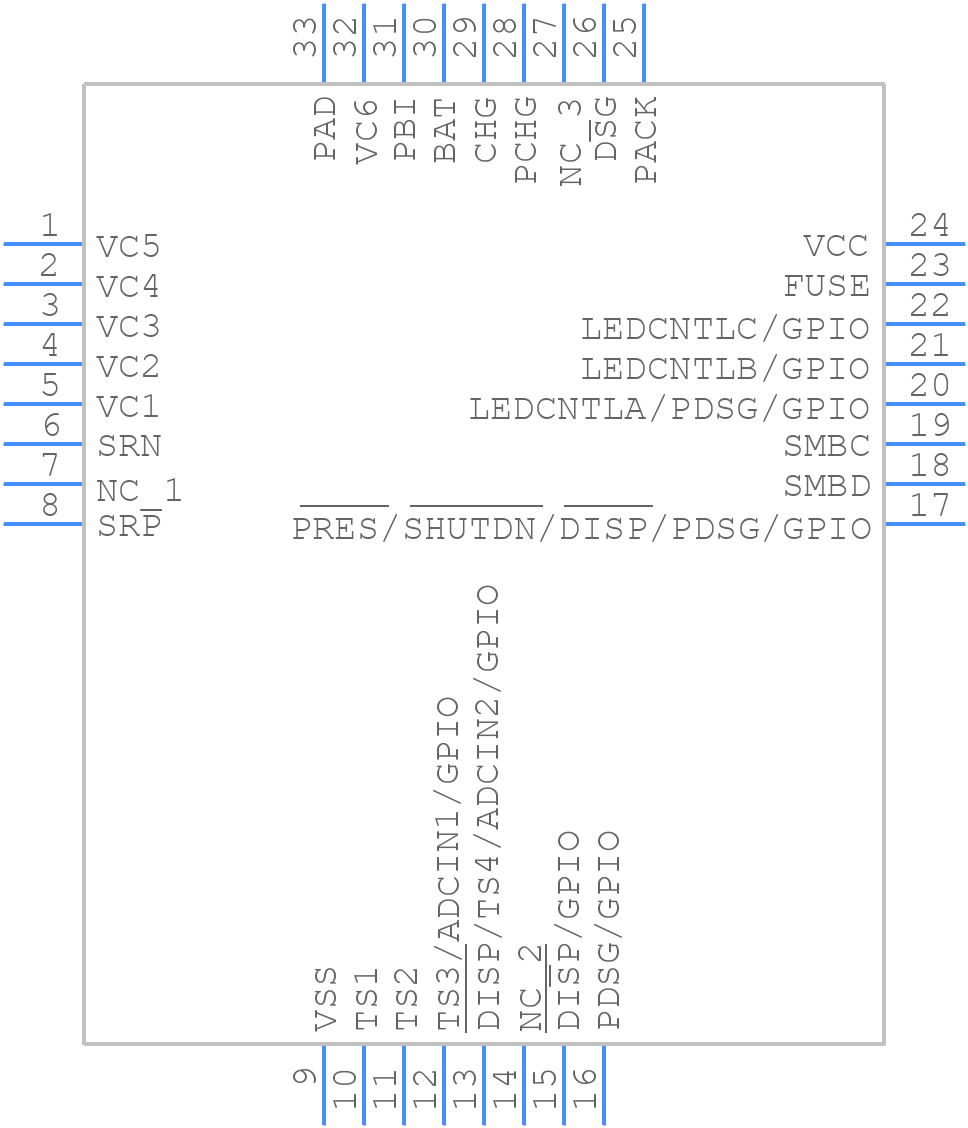

Use the download button to access the BQ40Z80RSMR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ40Z,
or try a keyword search, such as Power Management Circuits
