Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the power and ground planes separate, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise.
To ensure accurate battery monitoring, it's crucial to calibrate the BQ4802LYDW during manufacturing or production. This involves setting the correct gain and offset values for the fuel gauge. Additionally, consider using a high-precision voltage reference and a stable temperature environment to minimize errors.
The BQ4802LYDW is designed to handle up to 500 charge/discharge cycles, but this can vary depending on the specific application, battery type, and environmental conditions. It's essential to follow proper charging and discharging procedures to maximize the device's lifespan.
While the BQ4802LYDW is optimized for lithium-ion batteries, it can be used with other battery chemistries, such as nickel-metal hydride (NiMH) or lead-acid batteries. However, this may require custom calibration and configuration, and the device's accuracy and performance may vary.
To minimize battery self-discharge during long-term storage, it's recommended to store the battery at a cool temperature (around 20°C), keep it away from moisture, and avoid deep discharging. The BQ4802LYDW can also be configured to enter a low-power mode to reduce self-discharge.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ4802LYDW Overview

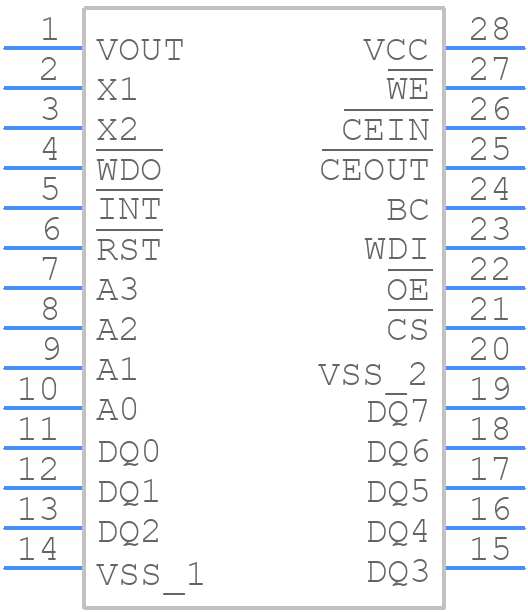

Use the download button to access the BQ4802LYDW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ480,
or try a keyword search, such as Timers or RTCs
