Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the power and ground planes separate, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise.
To ensure accurate battery monitoring and charging, it's crucial to follow the recommended calibration procedure outlined in the datasheet. Additionally, consider using a high-precision voltage reference, such as the TLV431, and ensure that the battery voltage sense lines are properly filtered and shielded.
The maximum charging current for the BQ4802LYDWR is 2A, but it's essential to consider the thermal limitations of the device and the battery being charged. The device can operate up to 85°C, but the charging current should be derated above 70°C to prevent overheating.
While the BQ4802LYDWR is designed for Li-Ion batteries, it can be used with other battery chemistries, such as LiFePO4 or NiMH, with some modifications to the charging algorithm and voltage thresholds. However, it's essential to consult the datasheet and application notes for specific guidance and to ensure safe and reliable operation.
The BQ4802LYDWR has built-in overcharge protection, but it's essential to configure the device correctly using the OTP (One-Time Programmable) memory. The OTP settings define the charging voltage and current limits, as well as the timeout periods for overcharge detection.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ4802LYDWR Overview

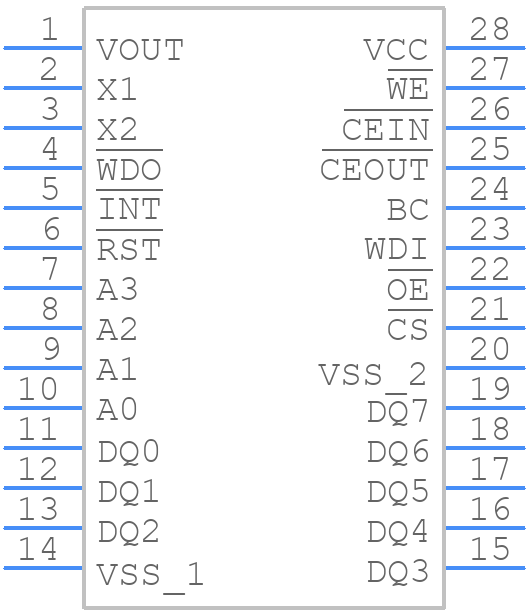

Use the download button to access the BQ4802LYDWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ480,
or try a keyword search, such as Timers or RTCs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
