BQ50002ARHBR - Texas Instruments

Description: Low-Cost 5-V Wireless Power Transmitter AFE WPC V 1.2 A11 Transmitter

Download BQ50002ARHBR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

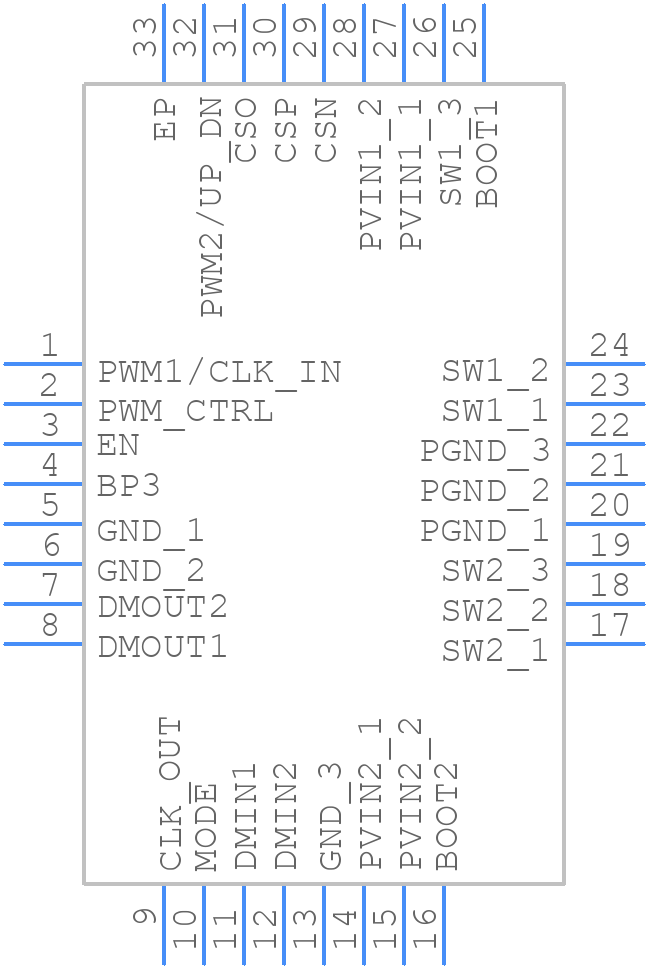

Symbol
BQ50002ARHBR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ50002ARHBR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - qfn-32
click to zoom
3D Models
BQ50002ARHBR - Texas Instruments - 3D model - Quad Flat No-Lead - qfn-32
click to zoom

BQ50002ARHBR Details

  • Manufacturer Part Number:

    BQ50002ARHBR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2016-08-20

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    3.9

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

BQ50002ARHBR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the power traces short and wide, and use a common ground point for the device.
  • Follow the power-up sequence outlined in the datasheet, and ensure the EN pin is high during power-up. Configure the device using the I2C interface, and verify the configuration using the STATUS register.
  • The device has a thermal shutdown feature that activates at 150°C. Ensure good airflow, use a heat sink if necessary, and avoid blocking the thermal pad. Monitor the device temperature using the THERM register.
  • Use the STATUS register to identify error codes, and consult the datasheet for troubleshooting guidelines. Verify the power supply, clock, and configuration settings. Use an oscilloscope to analyze the device's signals and waveforms.
  • Yes, the BQ50002ARHBR is designed for high-reliability applications. However, ensure you follow the recommended design and testing guidelines, and consult with Texas Instruments for specific requirements and certifications (e.g., ASIL, IEC 61508).

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BQ50002ARHBR Overview

Use the download button to access the BQ50002ARHBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ500, or try a keyword search, such as Power Management Circuits
