BQ500410ARGZR - Texas Instruments

Description: Wireless Charging ICs Pwr Trnsmittr Mgr Free Position

Download BQ500410ARGZR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

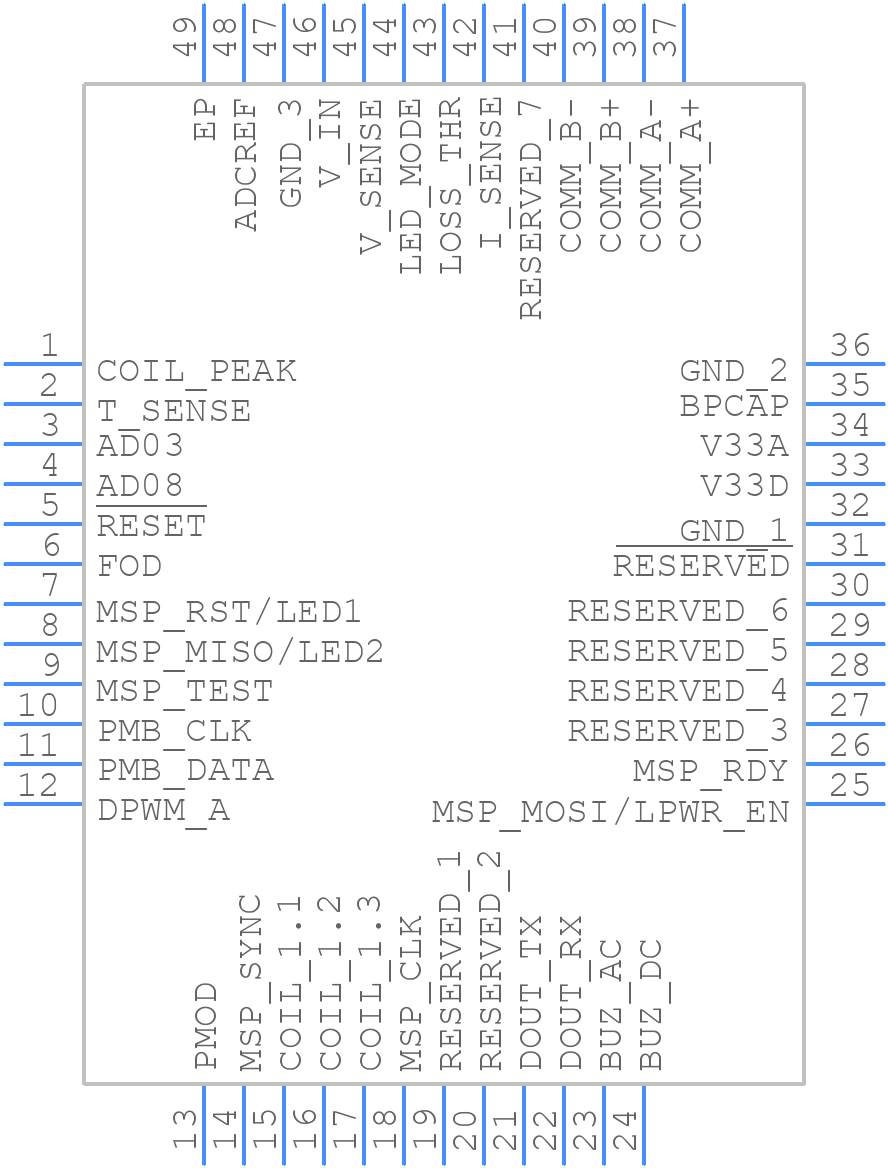

BQ500410ARGZR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ500410ARGZR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGZ0048A-2021
click to zoom
3D Models
BQ500410ARGZR - Texas Instruments - 3D model - Quad Flat No-Lead - RGZ0048A-2021
click to zoom

BQ500410ARGZR Details

  • Manufacturer Part Number:

    BQ500410ARGZR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Country Of Origin:

    Malaysia, Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    3.9

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    110 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    60 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

BQ500410ARGZR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good layout practices, such as separating analog and digital grounds, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise.
  • To ensure accurate voltage sensing and measurement, use a high-impedance voltage sense input, avoid loading the sense lines, and consider using a voltage sense amplifier or buffer to improve measurement accuracy and reduce noise.
  • The maximum allowed voltage on the VSENSE pin is 36V, but it's recommended to keep it below 30V to ensure reliable operation and prevent damage to the device.
  • The BQ500410ARGZR is rated for operation up to 125°C, but it's essential to consider the thermal design and ensure proper heat dissipation to prevent overheating and ensure reliable operation.
  • The BQ500410ARGZR supports various battery chemistries, including Li-ion, Li-polymer, and Lead-Acid. Configure the device by selecting the appropriate battery type and settings using the TI-provided software tools or by modifying the device's registers.
