Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good layout practices, such as keeping the power traces short and wide, using a solid ground plane, and minimizing noise coupling. Additionally, ensure the layout is symmetrical and balanced to reduce electromagnetic interference (EMI).
The inductor value depends on the input voltage, output voltage, and switching frequency. TI provides an inductor selection guide in the datasheet, but you can also use online inductor selection tools or consult with an applications engineer. A general rule of thumb is to choose an inductor with a high saturation current rating and low DC resistance.
The BQ500412RGZR is rated for operation up to 105°C ambient temperature, but it's essential to consider the thermal design and heat dissipation in your system. Ensure good airflow, use a heat sink if necessary, and monitor the device temperature to prevent overheating.
The BQ500412RGZR has built-in OVP and UVP features, but you may need to add external components to customize the protection thresholds. TI provides guidelines for implementing OVP and UVP in the datasheet and application notes. You can also use external voltage supervisors or protection ICs for more advanced protection schemes.
The input capacitor type and value depend on the input voltage, ripple current, and ESR requirements. TI recommends using a low-ESR ceramic or film capacitor with a value between 10uF to 22uF. Ensure the capacitor is rated for the maximum input voltage and can handle the ripple current.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ500412RGZR Overview

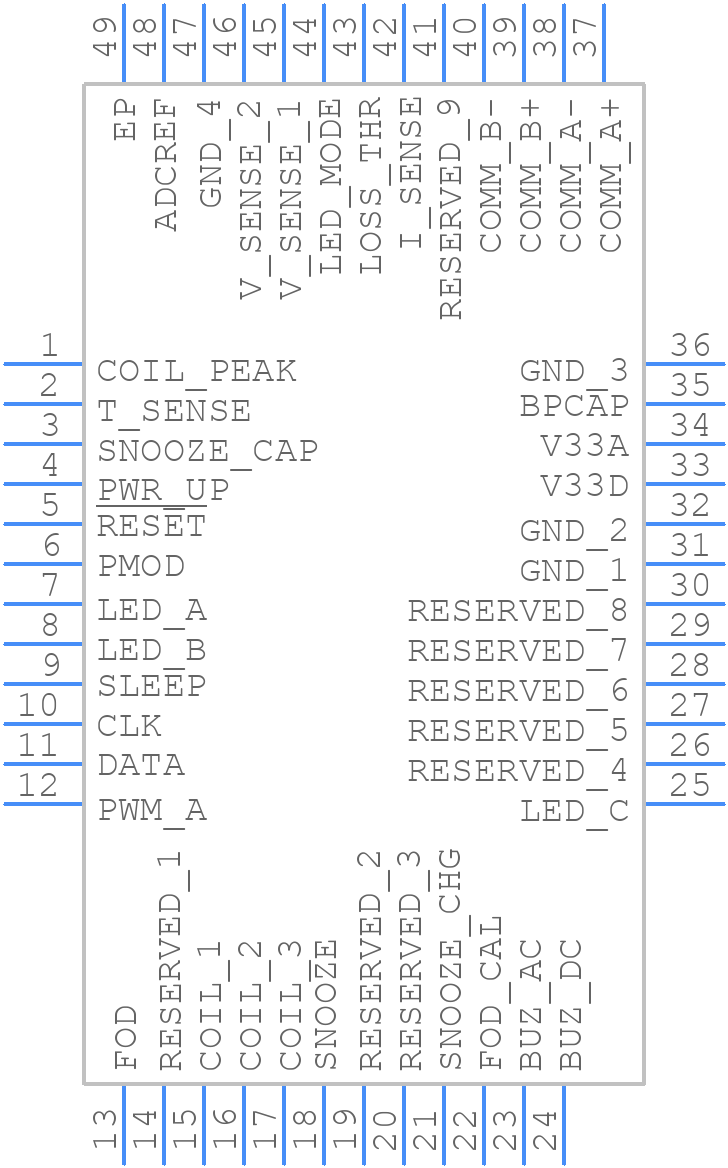

Use the download button to access the BQ500412RGZR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ500,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
