Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow the guidelines for component placement, thermal management, and routing to ensure optimal performance and minimize electromagnetic interference (EMI). A good starting point is to use the TI-provided layout as a reference and adapt it to your specific design requirements.
The inductor value selection depends on the input voltage, output voltage, and current requirements. TI provides an inductor selection guide in the datasheet, but you can also use online tools like the TI Inductor Selection Tool or consult with a TI FAE (Field Applications Engineer) for guidance. Additionally, consider factors like inductor core material, size, and saturation current when making your selection.
While the datasheet specifies an operating temperature range of -40°C to 125°C, the maximum ambient temperature for reliable operation depends on the specific application and thermal management. As a general rule, it's recommended to keep the ambient temperature below 85°C to ensure reliable operation and minimize the risk of overheating.
To ensure EMC compliance, follow the guidelines in the datasheet and application notes for layout, component selection, and shielding. Additionally, consider using a metal shield or a shielded inductor, and ensure that the PCB layout is designed to minimize radiated emissions. It's also recommended to perform EMC testing and certification according to relevant standards like CISPR 22 and EN 55022.
The recommended input capacitor type and value depend on the input voltage, frequency, and ripple current requirements. TI recommends using a low-ESR ceramic capacitor with a value between 10uF to 22uF. However, it's essential to consider the capacitor's voltage rating, temperature coefficient, and ripple current capability when making your selection.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ500412RGZT Overview

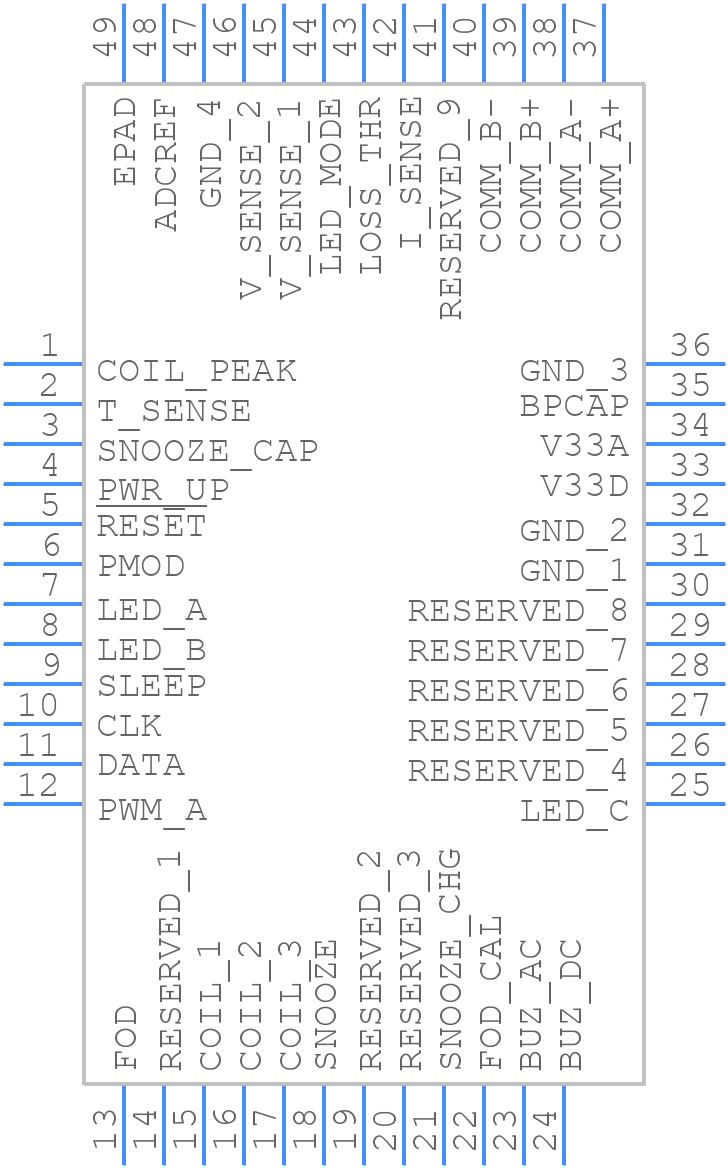

Use the download button to access the BQ500412RGZT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ500,
or try a keyword search, such as Power Management Circuits
