Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow the guidelines for decoupling, grounding, and routing to minimize noise and ensure proper operation. A 4-layer PCB with a solid ground plane and a separate power plane is recommended.
The datasheet provides guidelines for selecting external components such as capacitors, resistors, and inductors. Consider factors like voltage rating, current handling, and ESR (Equivalent Series Resistance) when selecting components. TI also offers a web-based tool, WEBENCH, to help with component selection and design.
The BQ500414QRGZTQ1 is rated for operation up to 105°C ambient temperature. However, it's essential to consider the thermal design and heat dissipation of the system to ensure reliable operation. A thermal analysis should be performed to ensure the device stays within its operating temperature range.
The BQ500414QRGZTQ1 has built-in OVP and UVP features, but they can be adjusted or customized using external resistors and capacitors. The datasheet provides guidelines for setting the OVP and UVP thresholds, and TI also offers application notes and design guides for implementing these features.
The recommended startup sequence is to power up the input voltage (VIN) first, followed by the enable pin (EN). This ensures proper initialization and prevents unwanted behavior. The datasheet provides a detailed startup sequence diagram and guidelines for proper startup and shutdown procedures.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ500414QRGZTQ1 Overview

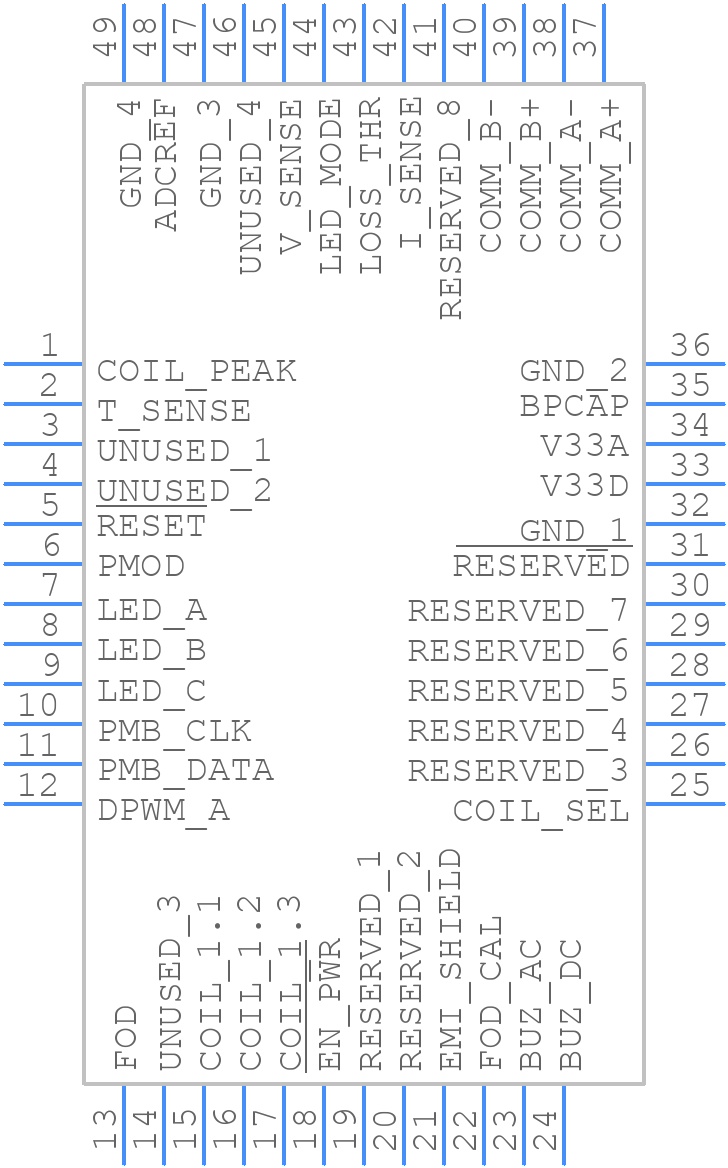

Use the download button to access the BQ500414QRGZTQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ500,
or try a keyword search, such as Power Management Circuits
