Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow the guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI). A good practice is to keep the high-frequency components close to the IC, use a solid ground plane, and avoid routing critical signals near the edges of the board.
The BQ500511ARHAT supports multiple WPT modes, including Qi-compliant, proprietary, and resonant modes. To configure the device for different modes, you need to program the device's registers using the I2C interface. The configuration process involves setting the operating frequency, power transfer mode, and other parameters. Refer to the datasheet and application notes for detailed instructions and register settings.
The BQ500511ARHAT is capable of transferring up to 15 W of power wirelessly. However, the actual power transfer capability depends on the coil design, alignment, and other system-level factors. It's essential to optimize the system design to achieve the maximum power transfer efficiency and ensure safe operation within the specified thermal limits.
The BQ500511ARHAT has built-in FOD and metal object detection capabilities. To ensure proper detection, you need to implement a detection algorithm using the device's analog-to-digital converter (ADC) and digital signal processing (DSP) capabilities. Texas Instruments provides application notes and code examples to help you implement FOD and metal object detection in your design.
The BQ500511ARHAT is a high-power device that requires proper thermal management to ensure reliable operation. You should consider the thermal resistance of the device, PCB, and surrounding components, and implement heat sinks, thermal vias, or other thermal management techniques to keep the device within the specified operating temperature range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ500511ARHAT Overview

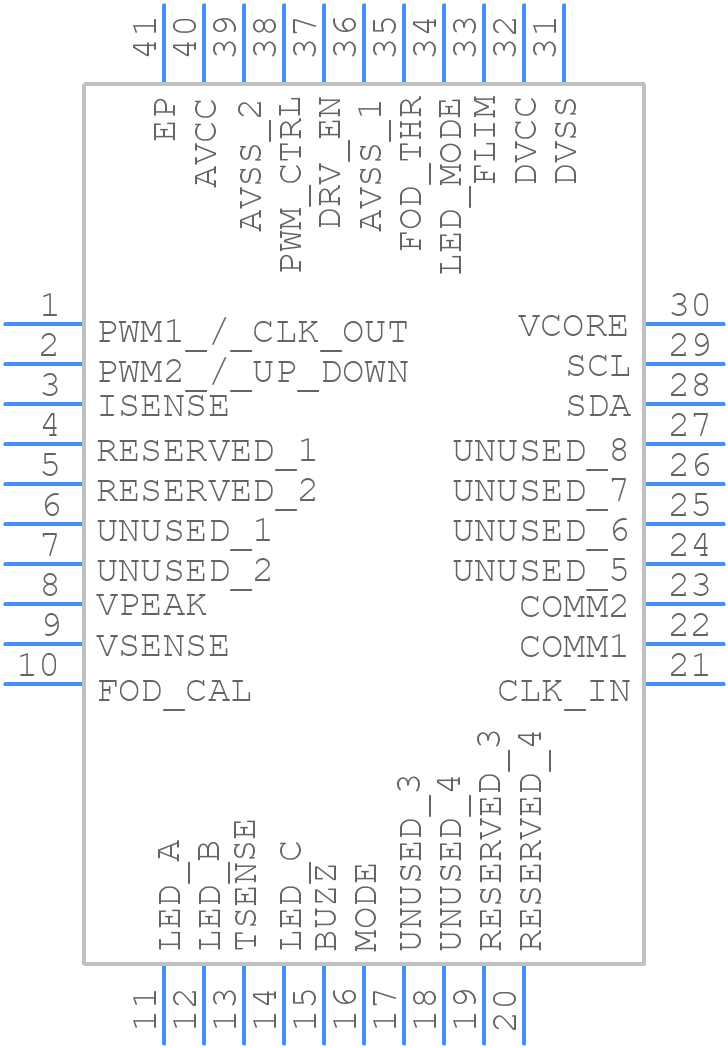

Use the download button to access the BQ500511ARHAT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ500,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
