Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good design practices, such as keeping the input and output traces separate, using a solid ground plane, and minimizing loop areas to reduce EMI.
To ensure reliable operation, it's crucial to follow the recommended operating conditions, including temperature, voltage, and current ratings. Additionally, consider using thermal management techniques, such as heat sinks or thermal pads, to maintain a stable temperature.
The maximum allowed input voltage for the BQ51013AYFPR is 5.5V, as specified in the datasheet. Exceeding this voltage may damage the device or affect its performance.
To minimize output voltage ripple and noise, use a suitable output capacitor with low ESR, and consider adding a filter capacitor or a pi-filter to the output. Additionally, ensure that the input voltage is stable and well-regulated.
The typical efficiency of the BQ51013AYFPR varies depending on the input voltage, output voltage, and load current. According to the datasheet, the device can achieve up to 92% efficiency under certain operating conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ51013AYFPR Overview

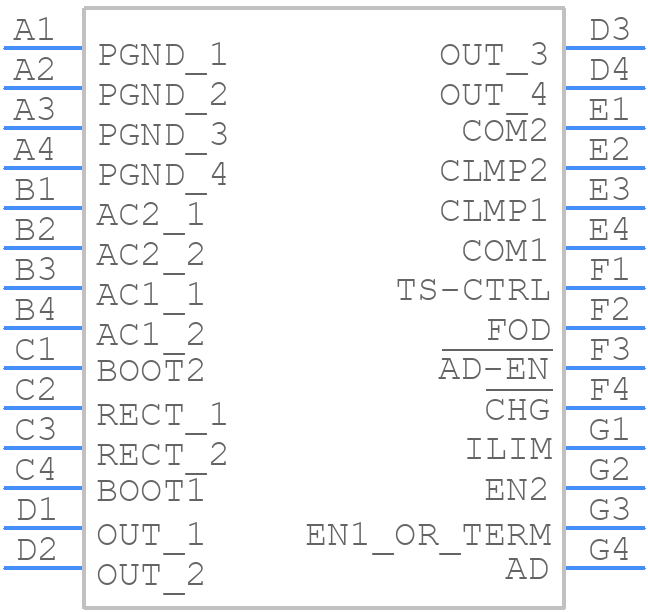

Use the download button to access the BQ51013AYFPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ510,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
