BQ51013BRHLR - Texas Instruments

Description: WPC 1.1 Compatible Fully Integrated Wireless Power Receiver IC

Download BQ51013BRHLR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

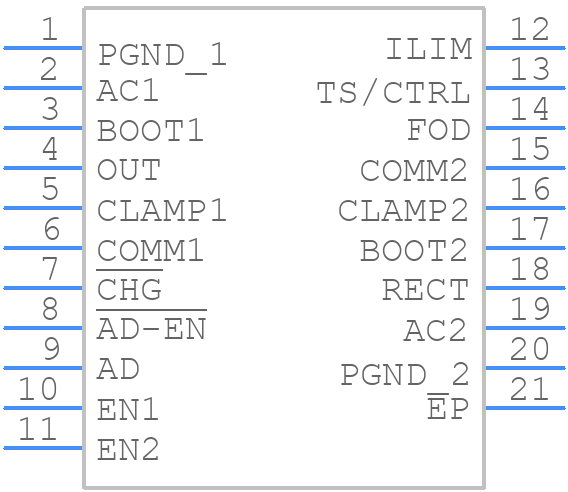

BQ51013BRHLR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ51013BRHLR - Texas Instruments PCB footprint - Other - Other - RHL0020A
click to zoom
3D Models
BQ51013BRHLR - Texas Instruments - 3D model - Other - RHL0020A
click to zoom

BQ51013BRHLR Details

  • Manufacturer Part Number:

    BQ51013BRHLR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • Input Voltage-Max:

    10 V

  • Input Voltage-Min:

    4 V

  • JESD-30 Code:

    R-PQCC-N20

  • JESD-609 Code:

    e4

  • Length:

    4.5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.14X.16,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    1500 mA

  • Supply Voltage-Max (Vsup):

    10 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +2.7V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.5 mm

BQ51013BRHLR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate layer for the high-frequency signals is recommended. Ensure that the input and output capacitors are placed close to the IC, and the layout should minimize parasitic inductance and capacitance.
  • Monitor the input voltage, output voltage, and output current to ensure they are within the recommended ranges specified in the datasheet. Also, ensure the device is operated within the recommended temperature range of -40°C to 125°C.
  • A 10uF to 22uF X5R or X7R ceramic capacitor is recommended for the input capacitor. The capacitor should be placed close to the VIN pin and have a low equivalent series resistance (ESR) to minimize voltage ripple.
  • Choose an output capacitor with a low ESR and a capacitance value between 10uF to 47uF. The output capacitor should be placed close to the VOUT pin and have a voltage rating that exceeds the output voltage.
  • The EN (enable) pin is used to enable or disable the device. Connect the EN pin to a logic-level signal (e.g., from a microcontroller) to control the device's operation. A logic-high signal enables the device, while a logic-low signal disables it.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BQ51013BRHLR Overview

Use the download button to access the BQ51013BRHLR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ510, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
