BQ51050BRHLR - Texas Instruments

Description: Qi (WPC) Compliant Highly Integrated Secondary-Side Direct Lithium Ion Charger.

Download BQ51050BRHLR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

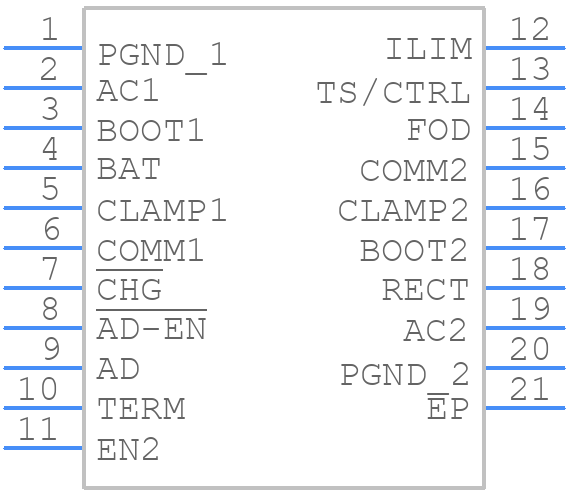

BQ51050BRHLR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ51050BRHLR - Texas Instruments PCB footprint - Other - Other - RHL0020A
click to zoom
3D Models
BQ51050BRHLR - Texas Instruments - 3D model - Other - RHL0020A
click to zoom

BQ51050BRHLR Details

  • Manufacturer Part Number:

    BQ51050BRHLR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • Input Voltage-Max:

    10 V

  • Input Voltage-Min:

    4 V

  • JESD-30 Code:

    R-PQCC-N20

  • JESD-609 Code:

    e4

  • Length:

    4.5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20/24,.14X.18,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.9 mm

  • Supply Current-Max (Isup):

    10 mA

  • Supply Voltage-Max (Vsup):

    10 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +15V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.5 mm

BQ51050BRHLR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate layer for the high-frequency signals is recommended. The layout should also minimize the loop area of the power traces to reduce EMI.
  • The device should be mounted on a heat sink with a thermal conductivity of at least 1 W/m-K. The heat sink should be connected to a solid ground plane to ensure good thermal conduction.
  • A 10uF to 22uF X7R or X5R ceramic capacitor is recommended for the input capacitor. The capacitor should be placed as close as possible to the VIN pin.
  • The output filter should be designed to minimize the output voltage ripple. A 10uF to 22uF output capacitor with a low ESR is recommended. The inductor value should be chosen to achieve the desired output voltage ripple.
  • The high-frequency components such as the inductor, input capacitor, and output capacitor should be placed as close as possible to the device. The layout should also minimize the length of the power traces and avoid crossing signal lines.
