BQ51050BRHLT - Texas Instruments

Description: Texas Instruments BQ51050BRHLT, Wireless charging receiver with integrated Li-Ion Battery Charger

Download BQ51050BRHLT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

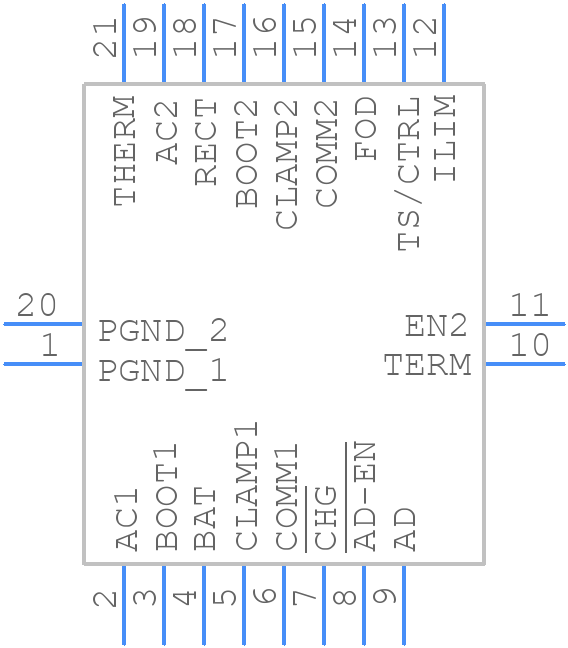

BQ51050BRHLT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ51050BRHLT - Texas Instruments PCB footprint - Other - Other - RHL(R-PVQFN-N20)_1
click to zoom
3D Models
BQ51050BRHLT - Texas Instruments - 3D model - Other - RHL(R-PVQFN-N20)_1
click to zoom

BQ51050BRHLT Details

  • Manufacturer Part Number:

    BQ51050BRHLT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • Input Voltage-Max:

    10 V

  • Input Voltage-Min:

    4 V

  • JESD-30 Code:

    R-PQCC-N20

  • JESD-609 Code:

    e4

  • Length:

    4.5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20/24,.14X.18,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.9 mm

  • Supply Current-Max (Isup):

    10 mA

  • Supply Voltage-Max (Vsup):

    10 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +15V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.5 mm

BQ51050BRHLT Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate layer for the high-frequency signals is recommended. Ensure that the input and output capacitors are placed close to the device, and the layout should minimize the loop area of the high-frequency signals.
  • Monitor the input voltage, output voltage, and output current to ensure they are within the recommended operating ranges specified in the datasheet. Also, ensure the device is operated within the recommended temperature range of -40°C to 125°C.
  • A low-ESR ceramic capacitor with a value of 10uF to 22uF is recommended for the input capacitor. The capacitor should be placed close to the VIN pin and have a voltage rating of at least 10V.
  • Choose an output capacitor with a low ESR and a value of 10uF to 22uF. The capacitor should be placed close to the VOUT pin and have a voltage rating of at least 5V. Consider using a ceramic or polymer capacitor with a low ESL and a high ripple current rating.
  • Ensure good airflow around the device, and consider using a heat sink or thermal pad to improve heat dissipation. The device's thermal pad should be connected to a solid ground plane to improve thermal performance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BQ51050BRHLT Overview

Use the download button to access the BQ51050BRHLT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ510, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
