Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good design practices, such as keeping the input and output traces separate, using a solid ground plane, and minimizing loop areas to reduce EMI.
To ensure reliable operation, it's crucial to follow the recommended operating conditions, including temperature, voltage, and current ratings. Additionally, consider using thermal management techniques, such as heat sinks or thermal pads, to maintain a safe operating temperature.
Using a different inductor value or type can affect the converter's performance, efficiency, and stability. It's essential to select an inductor that meets the recommended specifications to ensure optimal performance. If a different inductor is used, it may require adjustments to the compensation network or other components.
To troubleshoot issues, start by verifying the PCB layout, component values, and soldering quality. Check for signs of overheating, and ensure that the input and output capacitors are properly selected and placed. Use oscilloscopes or other diagnostic tools to analyze the waveforms and identify the root cause of the issue.
The BQ51051BYFPT is a high-reliability device, but it's essential to follow Texas Instruments' guidelines and recommendations for safety-critical applications. Ensure that the device is used within its recommended operating conditions, and consider implementing additional safety features, such as redundancy or fault detection, to meet the specific requirements of your application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ51051BYFPT Overview

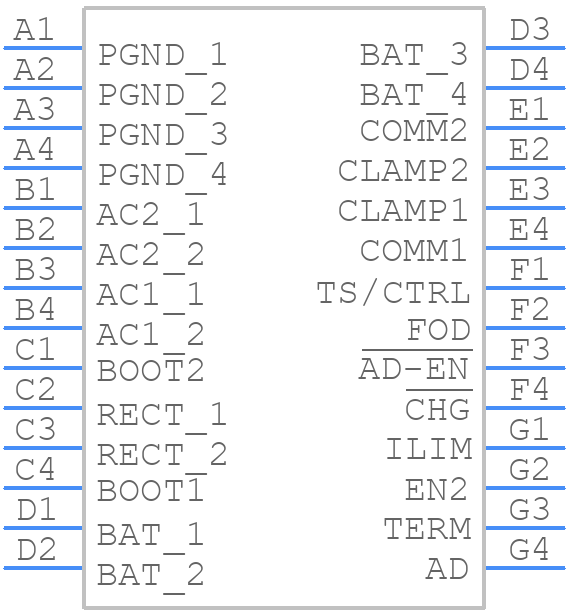

Use the download button to access the BQ51051BYFPT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ510,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
