Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good design practices, such as keeping the input and output traces short, using a solid ground plane, and minimizing noise coupling. Additionally, ensure the device is placed near the battery and the output capacitors are close to the device.
The output capacitors should be selected based on the output voltage, output current, and ripple requirements. A general rule of thumb is to use low-ESR capacitors with a capacitance value between 10uF to 22uF. The datasheet provides more detailed guidance on capacitor selection.
The BQ51221YFPR has an absolute maximum input voltage rating of 18V. However, it's recommended to operate the device within the specified input voltage range of 4.5V to 14V to ensure reliable operation and prevent damage.
The BQ51221YFPR has built-in OVP and UVP features. For OVP, the device will automatically shut down if the input voltage exceeds 16.5V. For UVP, the device will shut down if the input voltage falls below 3.5V. You can also implement external OVP and UVP circuits using voltage supervisors or comparators if needed.
The thermal derating curve is not explicitly provided in the datasheet. However, Texas Instruments recommends following the general thermal derating guidelines for their devices, which typically start at 100% output current at 25°C and derate to 50% at 85°C.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ51221YFPR Overview

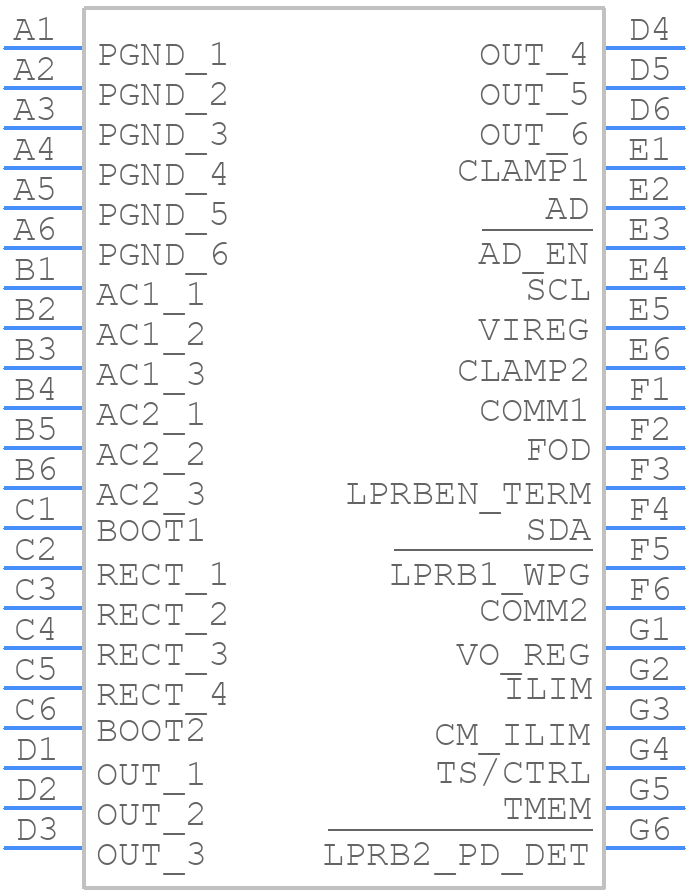

Use the download button to access the BQ51221YFPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ512,
or try a keyword search, such as Other Signal Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
