BQ51222YFPR - Texas Instruments

Description: Dual Mode 5-W (WPC v1.2 and PMA) Single Chip Wireless Power Receiver

Download BQ51222YFPR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

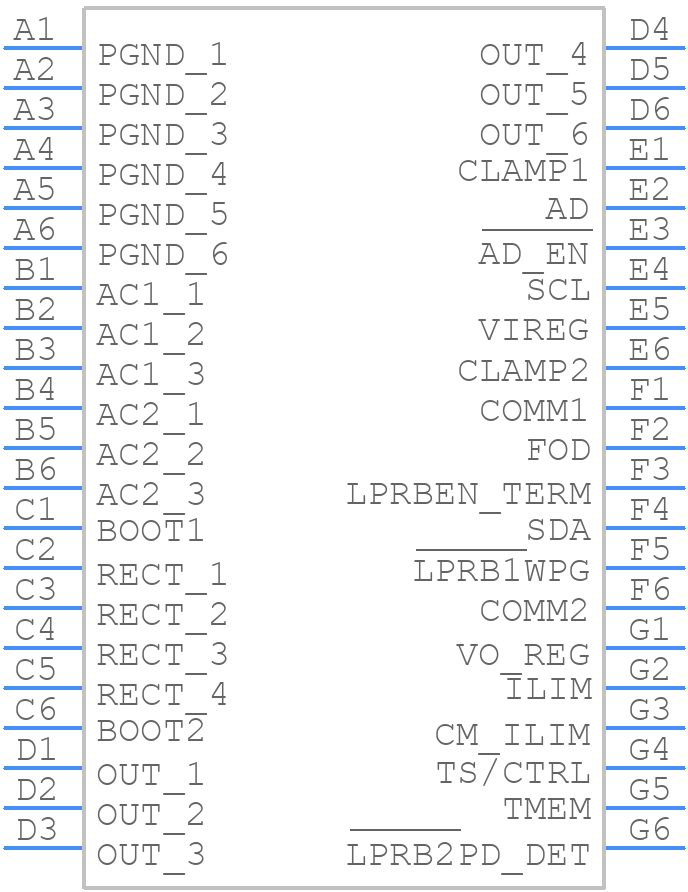

BQ51222YFPR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ51222YFPR - Texas Instruments PCB footprint - BGA - BGA - YFP0042 2021
click to zoom
3D Models
BQ51222YFPR - Texas Instruments - 3D model - BGA - YFP0042 2021
click to zoom

BQ51222YFPR Details

  • Manufacturer Part Number:

    BQ51222YFPR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2016-07-29

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PBGA-B42

  • JESD-609 Code:

    e1

  • Length:

    3.556 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    42

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.5 mm

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.844 mm

BQ51222YFPR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the power traces short and wide, and use a common ground point for the IC and the capacitors.
  • Follow the recommended power-up sequence: VCC, then EN, then VIN. Ensure the input voltage is within the recommended range (4.5V to 18V). Configure the device using the I2C interface, following the datasheet's configuration register settings.
  • The BQ51222YFPR has a thermal pad on the bottom. Ensure good thermal conductivity by using a thermal interface material (TIM) and a heat sink if necessary. Keep the device away from heat sources and ensure good airflow.
  • Use the EN pin to control the device's power modes. The device has three power modes: active, sleep, and shutdown. Use the I2C interface to configure the power modes and adjust the device's performance to minimize power consumption.
  • Follow proper PCB layout and routing guidelines to minimize EMI. Use shielding, filtering, and grounding techniques to reduce emissions. Ensure the device is properly decoupled and bypassed to minimize noise.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BQ51222YFPR Overview

Use the download button to access the BQ51222YFPR schematic symbol, PCB footprint, and 3D model.
