Texas Instruments provides a recommended PCB layout in the BQ76905RGRR evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The BQ76905RGRR supports various battery chemistries through its programmable parameters. Engineers can configure the device using the TI-provided software tools, such as the BQ76905RGRR Evaluation Software, to set the desired chemistry, voltage, and current limits.
The BQ76905RGRR fuel gauge accuracy is typically ±1% over the entire operating range. Calibration involves programming the device with the specific battery characteristics, such as capacity, using the TI-provided software tools. Additionally, the device supports learn cycles to adapt to the battery's aging process.
The BQ76905RGRR supports active balancing, which involves transferring energy between cells to maintain balance. The balancing limits are programmable and can be set based on the specific battery requirements. The device can balance up to 5 cells in series and 2 strings in parallel.
The BQ76905RGRR includes various safety features, such as overcharge and over-discharge protection, short-circuit protection, and thermal monitoring. It also supports fault detection and reporting, including cell voltage and temperature monitoring.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ76905RGRR Overview

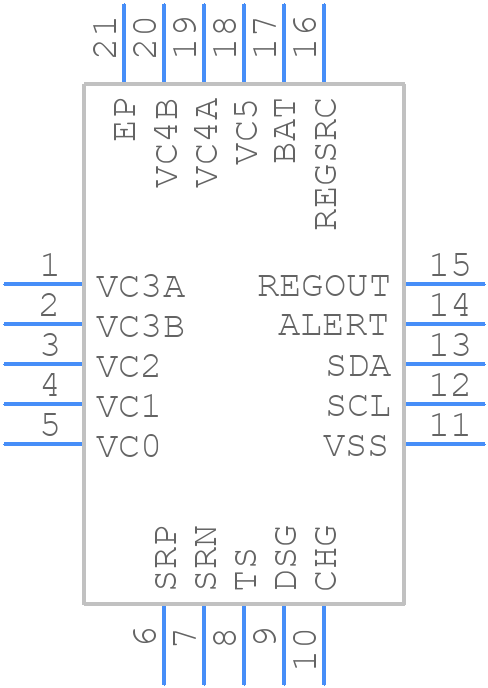

Use the download button to access the BQ76905RGRR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ769,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
