Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling. Additionally, ensure that the PCB layout is symmetrical and balanced to reduce electromagnetic interference (EMI).
Calibration is crucial for accurate battery monitoring. Follow the calibration procedure outlined in the datasheet, which involves setting the internal voltage reference, adjusting the gain and offset of the ADC, and configuring the battery chemistry and capacity. It's also essential to use a high-precision voltage reference and a stable temperature environment during calibration.
The BQ7692000PW can monitor up to 16 series-connected batteries. However, the maximum number of batteries that can be connected depends on the specific application and the battery management system (BMS) design. It's essential to ensure that the total voltage and current ratings of the batteries do not exceed the maximum ratings of the BQ7692000PW.
The BQ7692000PW provides a built-in balancing function that ensures equal charging and discharging of each cell in a series-connected battery pack. The device also supports various charging protocols, including constant current and constant voltage charging. However, the BQ7692000PW does not provide charging circuitry, and an external charger is required.
The BQ7692000PW uses a proprietary serial communication protocol, which is described in the datasheet. The device can be interfaced using a microcontroller or a dedicated communication interface, such as an SPI or I2C interface. Texas Instruments provides a software development kit (SDK) and example code to facilitate communication with the BQ7692000PW.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ7692000PW Overview

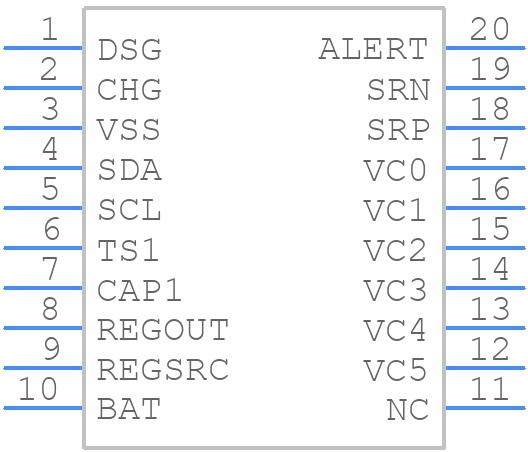

Use the download button to access the BQ7692000PW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ769,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
