Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling. Additionally, ensure that the PCB layout is symmetrical and balanced to reduce electromagnetic interference (EMI).
Calibration is crucial for accurate battery monitoring. Follow the calibration procedure outlined in the datasheet, which involves setting the internal voltage reference, adjusting the gain and offset of the ADC, and configuring the battery chemistry and capacity. It's also essential to use a high-precision voltage reference and a stable temperature environment during calibration.
The BQ7692003PW can monitor up to 16 series-connected batteries. However, the maximum number of batteries that can be connected depends on the specific application and the battery management system (BMS) design. It's essential to ensure that the total voltage and current ratings of the batteries do not exceed the maximum ratings of the BQ7692003PW.
The BQ7692003PW provides a built-in balancing function that ensures equal charging and discharging of each battery cell. The device can also be configured to control external balancing FETs or resistors. For charging, the BQ7692003PW can be connected to a charger IC or a power management IC to control the charging process. The device provides a charge/discharge control output that can be used to control the charging circuitry.
The BQ7692003PW uses a proprietary I2C-like interface for communication. The device can be interfaced with a microcontroller or a host processor using a standard I2C interface. The datasheet provides detailed information on the communication protocol, including the register map and command set.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ7692003PW Overview

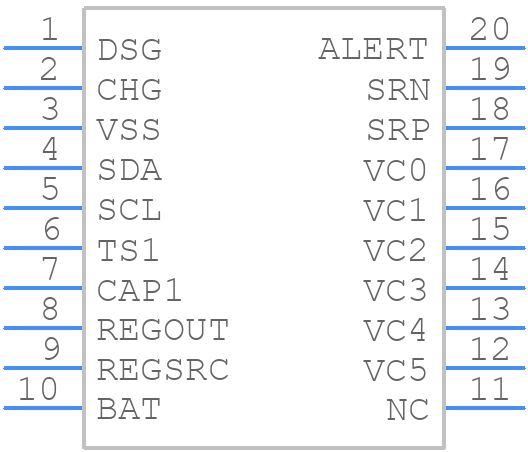

Use the download button to access the BQ7692003PW schematic symbol, PCB footprint, and 3D model.
