Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling. Additionally, ensure that the PCB layout is symmetrical and balanced to reduce electromagnetic interference (EMI).
Calibration of the BQ7692006PWR involves adjusting the internal voltage and current sense amplifiers. Texas Instruments provides a calibration procedure in the datasheet, which involves applying known voltage and current levels to the device and adjusting the internal amplifiers to match the expected values. It's essential to follow the recommended calibration procedure to ensure accurate measurements.
The BQ7692006PWR is rated for operation from -40°C to 125°C. However, the device's accuracy and performance may degrade at extreme temperatures. It's essential to ensure that the device is operated within the recommended temperature range to maintain accuracy and reliability.
The BQ7692006PWR has built-in overvoltage and undervoltage detection capabilities. The device can detect voltage levels outside the specified range and generate an alert or interrupt signal. It's essential to implement proper voltage monitoring and protection circuits to prevent damage to the device and ensure reliable operation.
Yes, the BQ7692006PWR is designed for use in battery management systems (BMS). The device provides accurate voltage and current measurements, which are essential for monitoring and controlling battery state-of-charge, state-of-health, and charge/discharge cycles. The BQ7692006PWR can be used in conjunction with other BMS components, such as battery chargers, fuel gauges, and protection circuits.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ7692006PWR Overview

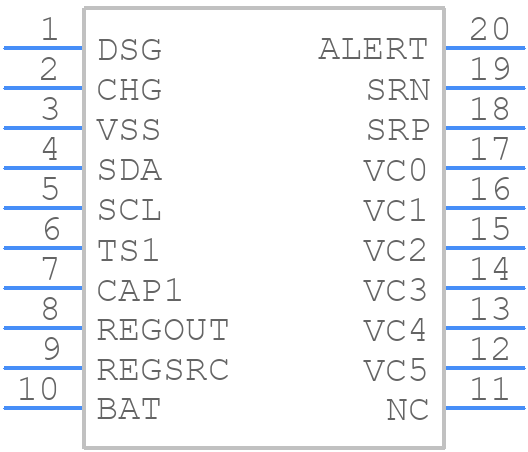

Use the download button to access the BQ7692006PWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ769,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
