BQ7693001DBT - Texas Instruments

Description: 6 to 10-Series Cell Li-Ion and Li-Phosphate Battery Monitor (bq76940 Family)

Download BQ7693001DBT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

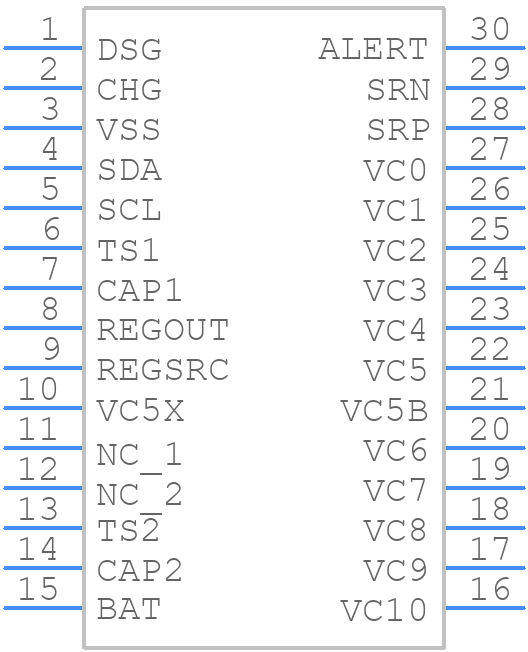

BQ7693001DBT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ7693001DBT - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DBT0030A-2021
click to zoom
3D Models
BQ7693001DBT - Texas Instruments - 3D model - Small Outline Packages - DBT0030A-2021
click to zoom

BQ7693001DBT Details

  • Manufacturer Part Number:

    BQ7693001DBT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    BATTERY MONITOR

  • Input Voltage-Max:

    50 V

  • JESD-30 Code:

    R-PDSO-G30

  • JESD-609 Code:

    e4

  • Length:

    7.8 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    30

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP30,.25,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    0.195 mA

  • Supply Voltage-Max (Vsup):

    25 V

  • Supply Voltage-Min (Vsup):

    6 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +0.7V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

BQ7693001DBT Frequently Asked Questions (FAQs)

  • TI recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital grounds separate. The layout should also minimize noise and interference by keeping the sense lines short and away from high-current paths.
  • Calibration is done through the I2C interface using the CAL_VSENSE and CAL_ISENSE registers. The device should be in a known state (e.g., with a known voltage and current) during calibration. TI provides a calibration procedure in the datasheet and application notes.
  • The BQ76930x can monitor up to 16 series-connected cells. However, the device can be cascaded to monitor more cells, but this requires additional external circuitry and complexity.
  • The BQ76930x has built-in cell balancing capabilities with three modes: passive balancing, active balancing, and hybrid balancing. The device can also be configured to use external balancing FETs or resistors.
  • The BQ76930x supports I2C, SPI, and UART communication protocols. The protocol is selected through the COMM_MODE register, and the device can be configured using the TI-provided software development kit (SDK) or by writing custom code.
