Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling. Additionally, ensure that the PCB layout is symmetrical and balanced to reduce electromagnetic interference (EMI).
Calibration involves adjusting the internal voltage and current sense amplifiers to ensure accurate measurements. Follow the calibration procedure outlined in the datasheet, which involves applying known voltage and current levels to the device and adjusting the internal amplifiers accordingly. It's essential to calibrate the device in the same operating conditions as the final application.
The BQ7693002DBT communicates with digital systems through an I2C interface. Ensure that the I2C clock frequency is within the recommended range (100 kHz to 400 kHz), and use a pull-up resistor on the SCL and SDA lines. Additionally, consider using a buffer or repeater to extend the I2C bus length and improve signal integrity.
The BQ7693002DBT has built-in overvoltage and undervoltage detection capabilities. Configure the device to trigger an interrupt or generate a fault signal when an overvoltage or undervoltage condition is detected. Implement external protection circuits, such as voltage regulators or TVS diodes, to protect the device and the system from voltage transients.
The BQ7693002DBT is a high-power device that can generate heat during operation. Ensure good thermal conductivity by using a thermal pad or heat sink, and provide adequate airflow around the device. Follow the thermal design guidelines outlined in the datasheet, and consider using thermal interface materials to improve heat transfer.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ7693002DBT Overview

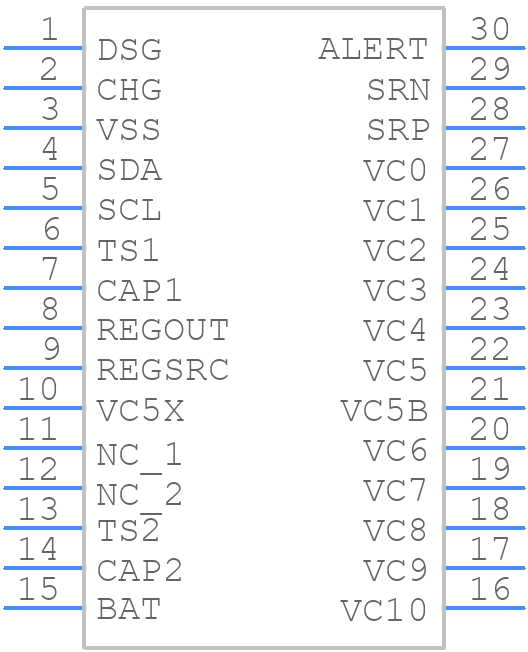

Use the download button to access the BQ7693002DBT schematic symbol, PCB footprint, and 3D model.
