Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling. Additionally, ensure that the PCB layout is symmetrical and balanced to reduce electromagnetic interference (EMI).
Calibration is crucial for accurate battery monitoring. Follow the calibration procedure outlined in the datasheet, which involves setting the internal voltage reference, adjusting the gain and offset of the ADC, and configuring the battery chemistry and capacity. It's also essential to consider the battery's state of charge, temperature, and age during calibration.
The BQ7694002DBTR is designed to monitor up to 16 series-connected battery cells. However, the maximum number of batteries that can be connected depends on the specific application and the battery management system's requirements. It's essential to consult the datasheet and application notes for guidance on configuring the device for multiple battery cells.
The BQ7694002DBTR provides a built-in balancing function that helps to equalize the state of charge of each battery cell. The device also supports charging and discharging control, allowing for safe and efficient battery management. However, the specific charging and balancing algorithms may require additional external circuitry and software implementation.
The BQ7694002DBTR is a high-power device that requires proper thermal management to ensure reliable operation. Ensure that the device is mounted on a suitable heat sink, and follow the recommended thermal design guidelines in the datasheet. Additionally, consider the ambient temperature, airflow, and thermal interface materials to prevent overheating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ7694002DBTR Overview

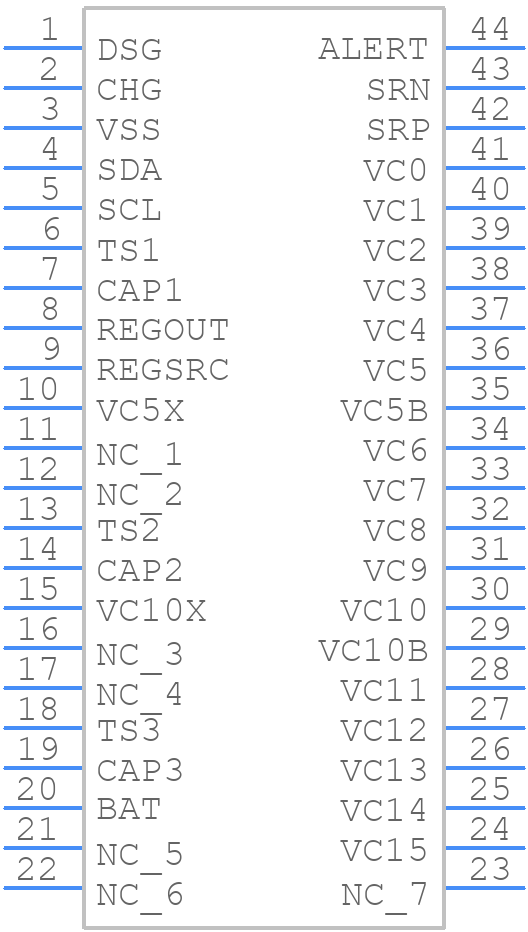

Use the download button to access the BQ7694002DBTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ769,
or try a keyword search, such as Power Management Circuits
