Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling. Additionally, ensure that the PCB layout is symmetrical and balanced to reduce electromagnetic interference (EMI).
Calibration involves adjusting the internal voltage and current sense amplifiers to ensure accurate measurements. Follow the calibration procedure outlined in the datasheet, which involves applying known voltage and current levels to the device and adjusting the internal amplifiers accordingly. It's essential to calibrate the device in the same operating conditions as the final application.
The BQ7694002DBT can withstand a maximum voltage of 420V and a maximum current of 200A. However, it's essential to ensure that the device is operated within the recommended operating conditions to prevent damage or degradation. Always follow the guidelines outlined in the datasheet and application notes.
To ensure the BQ7694002DBT is immune to EMI and RFI, follow good PCB design practices, such as using a solid ground plane, minimizing trace lengths, and using shielding or filtering components. Additionally, ensure that the device is properly grounded and that the power supply is well-regulated. Texas Instruments also provides guidelines for EMI and RFI mitigation in the datasheet and application notes.
The typical response time of the BQ7694002DBT for voltage and current measurements is around 10-20 microseconds. However, this can vary depending on the specific application and operating conditions. It's essential to consult the datasheet and application notes for more detailed information on response times and measurement accuracy.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ7694002DBT Overview

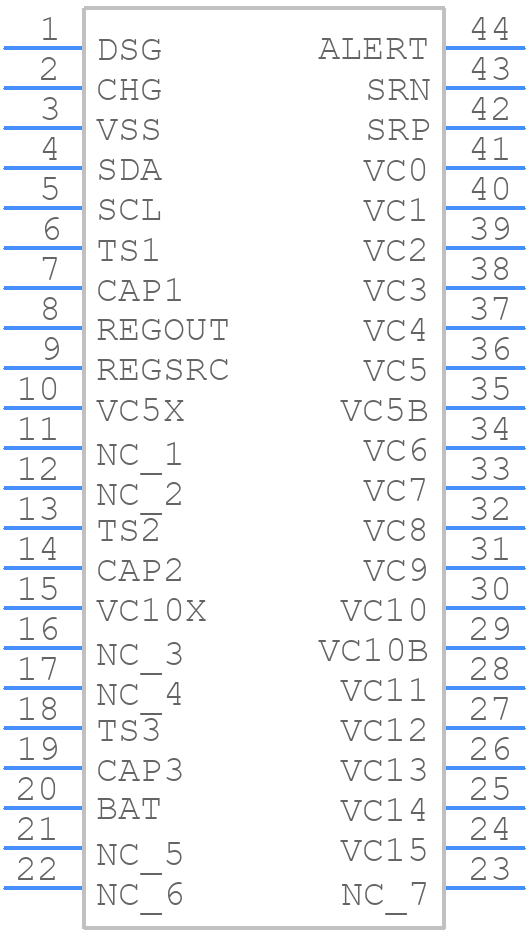

Use the download button to access the BQ7694002DBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ769,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
