Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good design practices, such as keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling. Additionally, ensure the layout is symmetrical and balanced to reduce electromagnetic interference (EMI).
The BQ7694203PFBR supports various battery chemistries, including lithium-ion, lithium-polymer, and lead-acid. To configure the device for a specific chemistry, you need to adjust the voltage and current settings using the I2C interface. Refer to the datasheet for specific register settings and the application note 'Battery Fuel Gauges for 1- to 5-Cell Batteries' (SLUA623) for more information.
The BQ7694203PFBR fuel gauge accuracy is typically ±1% over the operating temperature range of -40°C to 85°C. However, temperature affects the battery's internal resistance, which can impact the fuel gauge accuracy. To minimize errors, it's essential to calibrate the device during production and consider using temperature compensation techniques, such as those described in the application note 'Battery Fuel Gauge Calibration' (SLUA624).
The BQ7694203PFBR has a built-in POR and BOR circuitry to ensure proper device operation during power-up and brown-out conditions. To handle these events, design your system to detect and respond to the POR and BOR signals, which can be used to reset the microcontroller or other system components. Refer to the datasheet for specific timing and voltage threshold information.
In high-vibration or high-temperature environments, it's essential to ensure the device is properly secured to the PCB and that the PCB is designed to withstand the mechanical stress. Additionally, consider using thermal management techniques, such as heat sinks or thermal interfaces, to keep the device within its operating temperature range. Texas Instruments provides guidance on environmental testing and reliability in the datasheet and application notes.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ7694203PFBR Overview

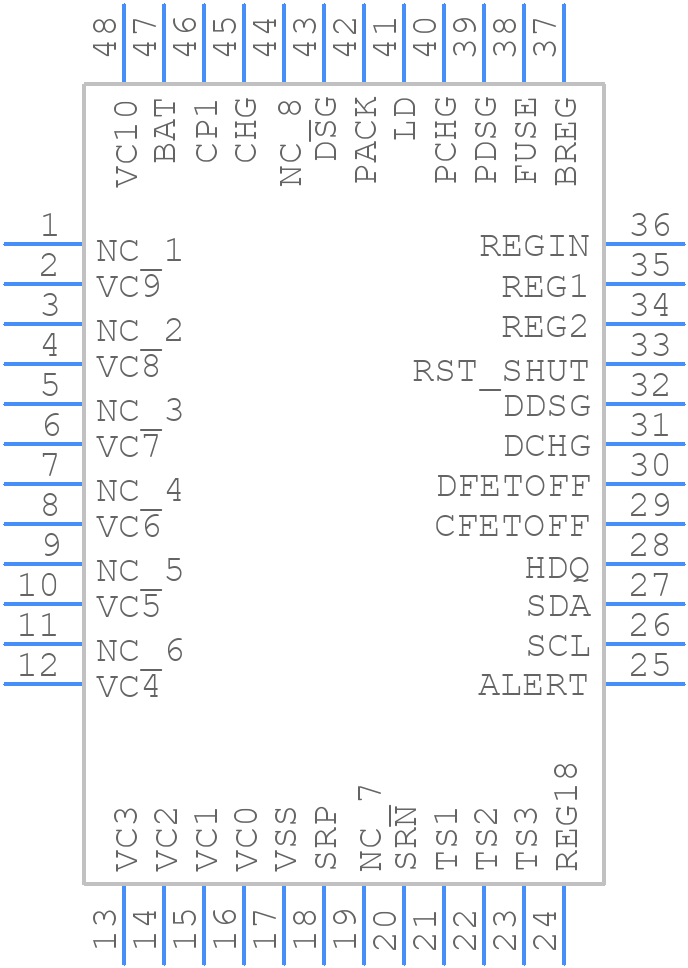

Use the download button to access the BQ7694203PFBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ769,
or try a keyword search, such as Power Management Circuits
