Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling. Additionally, ensure that the PCB layout is symmetrical and balanced to reduce electromagnetic interference (EMI).
Calibration is crucial for accurate battery monitoring. Follow the calibration procedure outlined in the datasheet, which involves setting the internal voltage reference, adjusting the gain and offset of the ADC, and configuring the battery chemistry and capacity. It's also essential to use a high-accuracy voltage reference and to calibrate the device at multiple temperatures.
The BQ7694204PFBR can monitor up to 4 series-connected batteries. However, the device can be cascaded to monitor more batteries by connecting multiple devices in a master-slave configuration. Consult the datasheet and application notes for more information on cascading multiple devices.
The BQ7694204PFBR provides a balancing function to ensure that each cell in a multi-cell battery pack is charged and discharged evenly. The device can also be configured to control external balancing FETs or resistors. For charging, the device can be connected to a charger IC or a microcontroller to control the charging process.
The BQ7694204PFBR uses a proprietary I2C-like interface for communication. The device can be interfaced with a microcontroller or a dedicated battery management system. Consult the datasheet and application notes for more information on the communication protocol and interface requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ7694204PFBR Overview

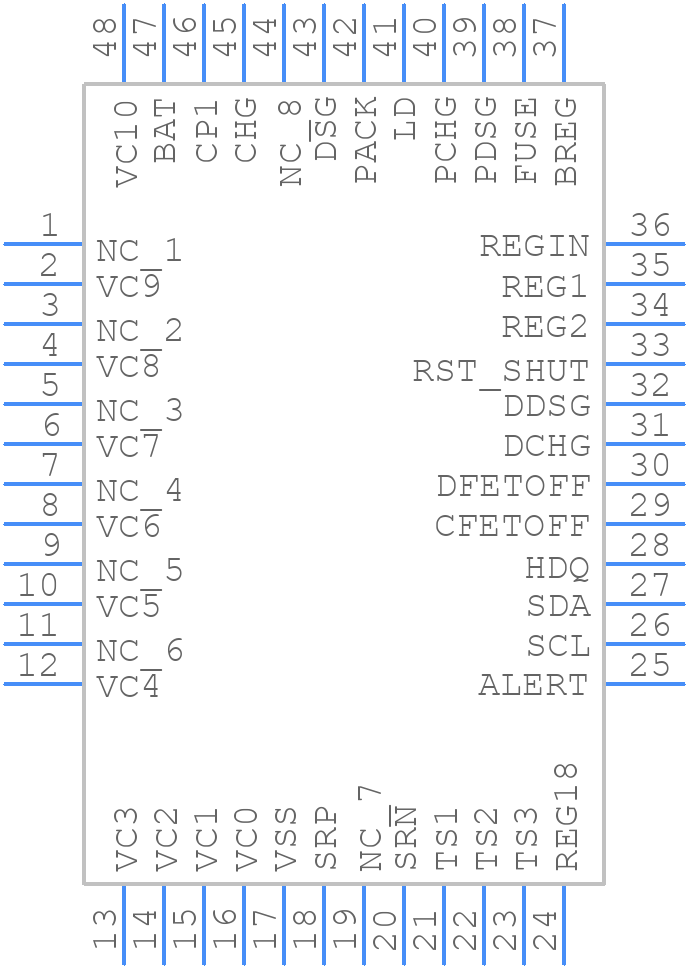

Use the download button to access the BQ7694204PFBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ769,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
