Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling. Additionally, ensure that the PCB layout is symmetrical and balanced to reduce electromagnetic interference (EMI).
Calibration involves adjusting the internal voltage and current sense amplifiers to ensure accurate measurements. Follow the calibration procedure outlined in the datasheet, which involves applying known voltage and current levels to the device and adjusting the internal amplifiers accordingly. It's essential to calibrate the device in the target application environment to account for any external factors that may affect accuracy.
The BQ76942PFBR is designed to operate within specific voltage and current ranges. The maximum allowed voltage is 420V, and the maximum allowed current is 100A. Exceeding these limits can damage the device or affect its accuracy. Ensure that the device is operated within the recommended specifications to ensure reliable and accurate measurements.
The BQ76942PFBR has built-in overcurrent and overvoltage protection features. However, it's essential to implement external protection mechanisms, such as fuses or circuit breakers, to prevent damage to the device and the system. Additionally, ensure that the device is configured to trigger an interrupt or alarm when an overcurrent or overvoltage condition is detected, allowing the system to take corrective action.
The BQ76942PFBR is designed to operate within a specific temperature range (-40°C to 125°C). While it can operate in high-temperature environments, it's essential to ensure that the device is properly cooled and that the system is designed to mitigate thermal effects. Consult the datasheet for thermal management guidelines and ensure that the device is operated within the recommended specifications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ76942PFBR Overview

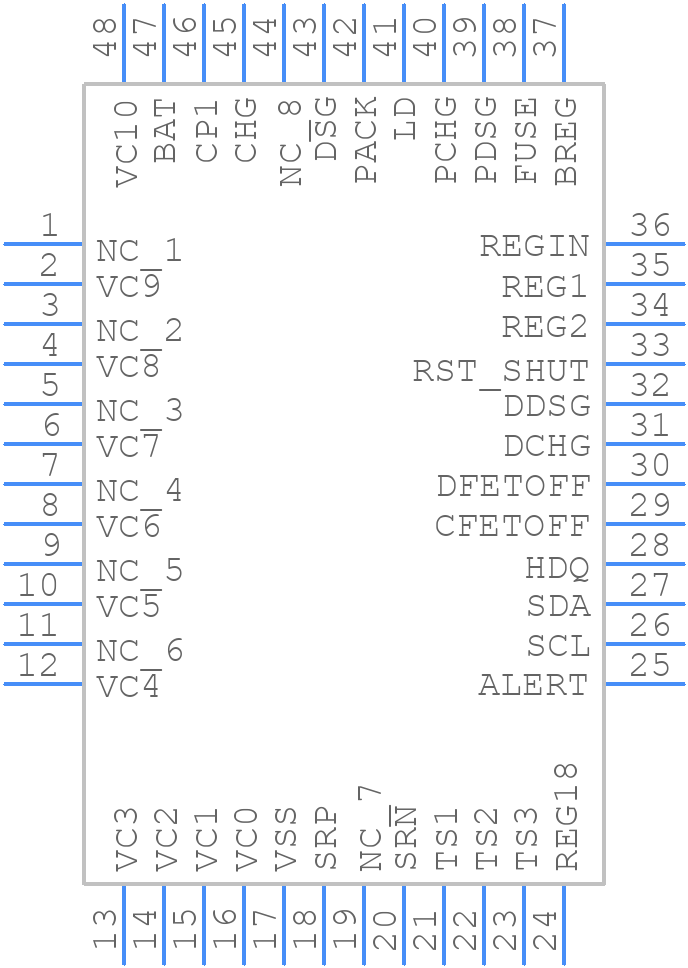

Use the download button to access the BQ76942PFBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ769,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
