BQ76PL102RGTR - Texas Instruments

Description: Battery Management PowerLAN Dual-Cell Li-Ion Battery Mon

Download BQ76PL102RGTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

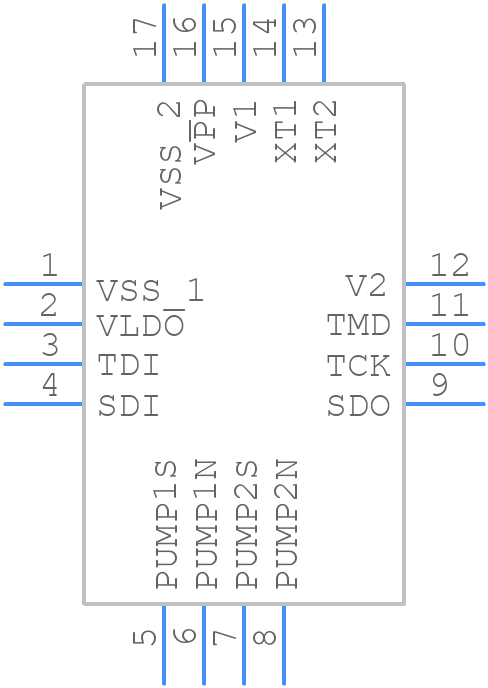

BQ76PL102RGTR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ76PL102RGTR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGT0016C height 1
click to zoom
3D Models
BQ76PL102RGTR - Texas Instruments - 3D model - Quad Flat No-Lead - RGT0016C height 1
click to zoom

BQ76PL102RGTR Details

  • Manufacturer Part Number:

    BQ76PL102RGTR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    HVQCCN,

  • Pin Count:

    16

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    BATTERY MONITOR

  • Input Voltage-Max:

    4.5 V

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    4.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

BQ76PL102RGTR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a decoupling capacitor (e.g., 10uF) close to the device to filter out noise.
  • Use a high-impedance voltage source (e.g., a voltage divider) to connect to the VIN pin. Ensure the input voltage is within the specified range (2.7V to 5.5V). Use a low-pass filter (e.g., RC filter) to filter out noise and ensure a stable voltage measurement.
  • Perform a self-calibration by connecting the CAL pin to VCC and then to GND. The device will automatically calibrate its internal voltage reference. For more accurate calibration, use an external voltage reference (e.g., a voltage divider) and adjust the CAL pin accordingly.
  • The POR and BOR features are enabled by default. To disable them, tie the POR/BOR pin to VCC. To use them, connect the POR/BOR pin to GND. Ensure the power supply is stable and within the specified range to avoid false resets.
  • The maximum allowed voltage on the analog input pins is VCC + 0.3V. Exceeding this voltage may damage the device. Use voltage limiting resistors or a voltage divider to ensure the input voltage is within the specified range.
