BQ76PL536PAPR - Texas Instruments

Description: 3 to 6 Series Cell Lithium-Ion Battery Monitor

Download BQ76PL536PAPR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
BQ76PL536PAPR - Texas Instruments - PCB symbol
click to zoom

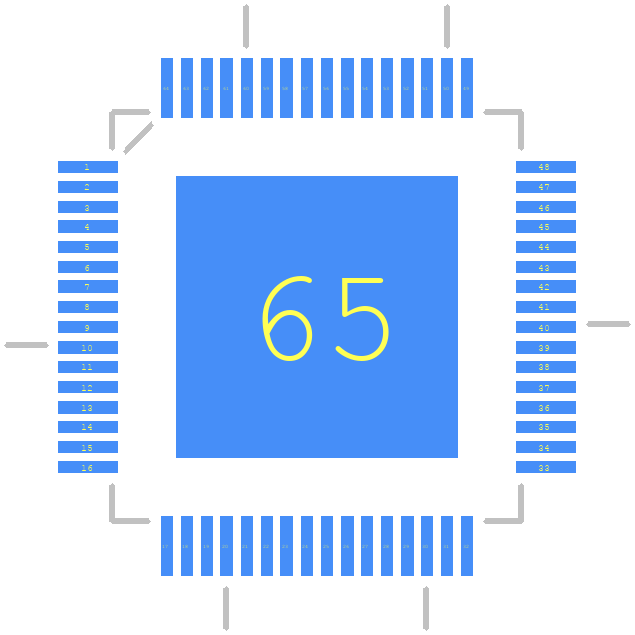

PCB Footprints
BQ76PL536PAPR - Texas Instruments PCB footprint - Other - Other - QFP50P1200X1200X120-65N
click to zoom
3D Models
BQ76PL536PAPR - Texas Instruments - 3D model - Other - QFP50P1200X1200X120-65N
click to zoom

BQ76PL536PAPR Details

  • Manufacturer Part Number:

    BQ76PL536PAPR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    QFP

  • Pin Count:

    64

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    3.9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    BATTERY MONITOR

  • JESD-30 Code:

    S-PQFP-G64

  • JESD-609 Code:

    e4

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Equivalence Code:

    TQFP64,.47SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    15 mA

  • Supply Voltage-Max (Vsup):

    27 V

  • Supply Voltage-Min (Vsup):

    7.2 V

  • Supply Voltage-Nom (Vsup):

    20 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    10 mm

BQ76PL536PAPR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a decoupling capacitor (e.g., 10uF) close to the device's power pins.
  • Use a high-impedance voltage source (e.g., a voltage divider) and a low-noise analog signal path. Ensure the input voltage is within the specified range (0-5V). Use a filter capacitor (e.g., 10nF) to reduce noise.
  • Perform a self-calibration by applying a known voltage (e.g., 2.5V) to the input pins and reading the output code. Use the calibration data to adjust the internal gain and offset registers. Refer to the datasheet for detailed calibration procedures.
  • Use an external voltage clamp (e.g., a zener diode) to limit the input voltage to the specified maximum (5.5V). Add a series resistor to limit the input current. Ensure the clamp voltage is below the device's absolute maximum rating.
  • Power up the device in the following sequence: VCC, AVCC, and then the input voltage. Ensure the power supplies are stable and within the specified voltage range before applying the input voltage.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

BQ76PL536PAPR Overview

Use the download button to access the BQ76PL536PAPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ76P, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
