Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good design practices, such as keeping the input and output traces separate, using a solid ground plane, and minimizing loop areas to reduce EMI.
To ensure accurate voltage monitoring, it's crucial to use a high-precision voltage reference, such as the internal reference or an external reference like the TLV431. Additionally, ensure that the voltage sense lines are properly filtered and shielded to minimize noise and interference.
Although the datasheet specifies a maximum VDD voltage of 5.5V, it's recommended to limit the voltage to 5V or less to ensure reliable operation and prevent damage to the device.
The BQ771802DPJT is designed to work with various battery chemistries. To configure it for a specific chemistry, refer to the datasheet and application notes, which provide guidelines for setting the voltage and current thresholds, as well as the charge/discharge profiles.
The EN (Enable) pin is used to enable or disable the battery monitor. When EN is high, the device is enabled, and when it's low, the device is disabled. This pin can be used to power down the device when not in use, reducing power consumption.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ771802DPJT Overview

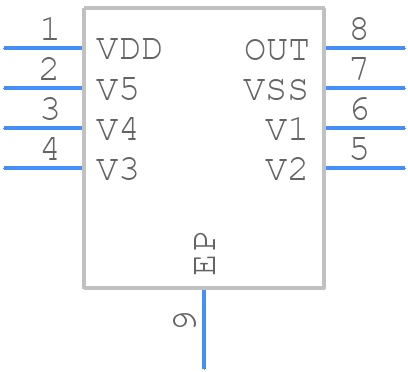

Use the download button to access the BQ771802DPJT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ771,
or try a keyword search, such as Power Management Circuits
