Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good design practices, such as keeping the input and output traces separate, using a solid ground plane, and minimizing loop areas to reduce EMI.
To ensure accurate voltage monitoring, it's crucial to use a high-precision voltage reference, such as the internal reference or an external reference, and to follow the recommended layout and routing guidelines to minimize noise and interference.
The maximum allowed voltage on the input pins is 6.5V, which is the absolute maximum rating. However, it's recommended to operate the device within the recommended operating conditions, which is 2.7V to 5.5V, to ensure reliable operation and prevent damage.
The BQ771806DPJT is designed to work with various battery chemistries, including Li-ion, Li-polymer, and NiMH. To configure the device for a specific battery chemistry, you need to set the appropriate voltage and current thresholds using the device's registers and programming interface.
The internal temperature sensor is used to monitor the device's temperature and provide thermal protection. You can use the temperature sensor to monitor the device's temperature and take action if it exceeds a certain threshold, such as shutting down the device or reducing the charging current.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ771806DPJT Overview

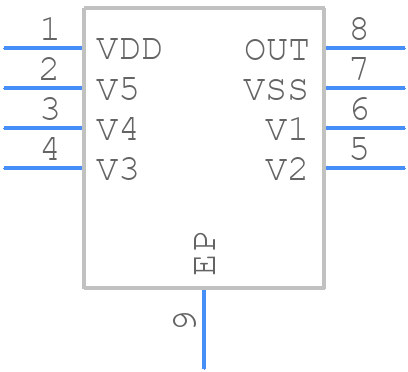

Use the download button to access the BQ771806DPJT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ771,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
