BQ771809DPJT - Texas Instruments

Description: Texas Instruments BQ771809DPJT, Battery Voltage Protection

Download BQ771809DPJT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

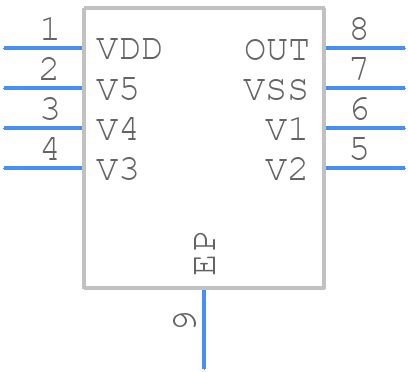

BQ771809DPJT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BQ771809DPJT - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DPJ0008A-2021-1
click to zoom
3D Models
BQ771809DPJT - Texas Instruments - 3D model - Small Outline No-lead - DPJ0008A-2021-1
click to zoom

BQ771809DPJT Details

  • Manufacturer Part Number:

    BQ771809DPJT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Battery over-voltage protection(Min/Max)(V) : 3.85 and 4.65

  • Analog IC - Other Type:

    BATTERY PROTECTOR

  • Input Voltage-Max:

    25 V

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.16,25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.75 mm

  • Supply Current-Max (Isup):

    0.002 mA

  • Supply Voltage-Max (Vsup):

    25 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +4.2V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

BQ771809DPJT Frequently Asked Questions (FAQs)

  • TI recommends a 2-layer or 4-layer PCB with a solid ground plane and a thermal relief pattern under the IC to improve heat dissipation. A minimum of 1 oz copper thickness is recommended.
  • The BQ771809DPJT is configurable for different battery chemistries through the use of external resistors and capacitors. TI provides a battery configuration tool to help with the design process.
  • The BQ771809DPJT supports charging currents up to 10A, but the maximum current is dependent on the external FETs and PCB design. TI recommends using the device's thermal monitoring feature to prevent overheating.
  • The device has built-in cell balancing functionality. TI recommends using external resistors and capacitors to configure the balancing circuitry. The device's datasheet provides a detailed application circuit for cell balancing.
  • TI recommends using FETs with a minimum current rating of 10A and a maximum RDS(on) of 10mΩ. The FETs should also have a suitable gate-source voltage rating and a low gate charge.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BQ771809DPJT Overview

Use the download button to access the BQ771809DPJT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ771, or try a keyword search, such as Power Management Circuits
