Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good design practices, such as keeping the power and ground planes separate, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise.
To ensure accurate battery monitoring and charging, it's crucial to follow the recommended calibration procedure outlined in the datasheet. Additionally, consider using a high-precision voltage reference and ensuring that the battery voltage sense lines are properly filtered and shielded.
The BQ771815DPJT supports up to 4A of charging current, but this can be limited by the external components, such as the charging FET and sense resistors. Ensure that these components are properly selected and sized to handle the desired charging current.
The BQ771815DPJT has a built-in overcharge protection feature that can be enabled by setting the appropriate registers. Additionally, consider using an external overcharge protection circuit to provide an additional layer of safety and protection.
The typical application circuit for the BQ771815DPJT involves connecting the device to a battery, a charging source, and a load. The datasheet provides a reference design that can be used as a starting point, but it's essential to customize the design to meet the specific requirements of the application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BQ771815DPJT Overview

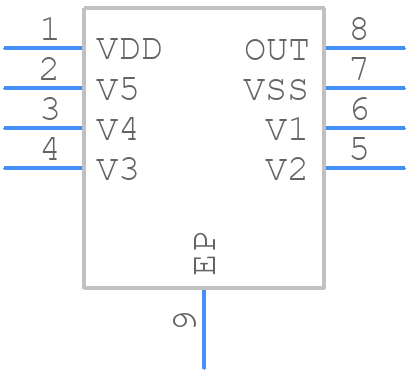

Use the download button to access the BQ771815DPJT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BQ771,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
